Waterfront Scene - Laser-Cut SVG Files

DIGITAL DOWNLOAD - you get the laser-cut files to make this yourself. Nothing is shipped.

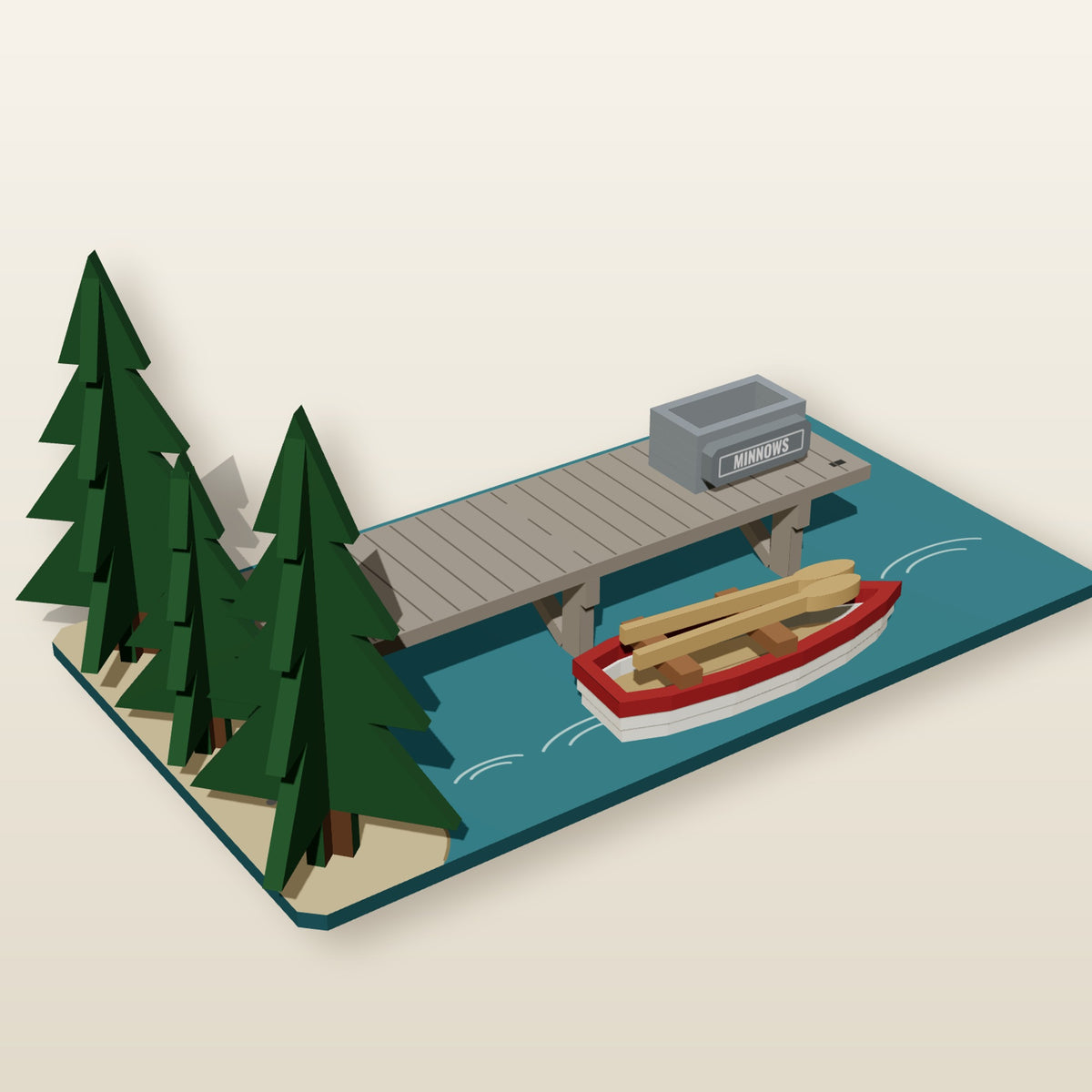

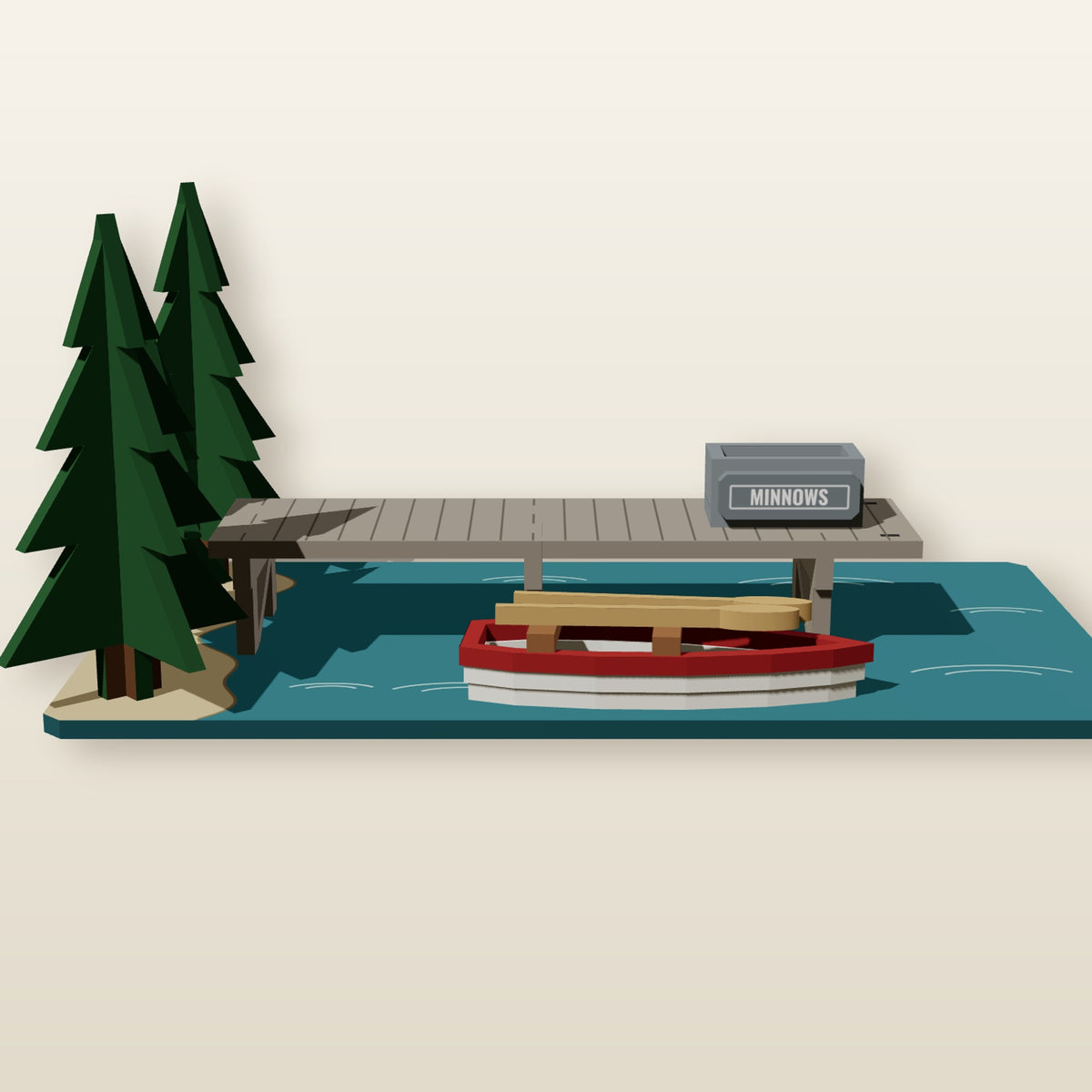

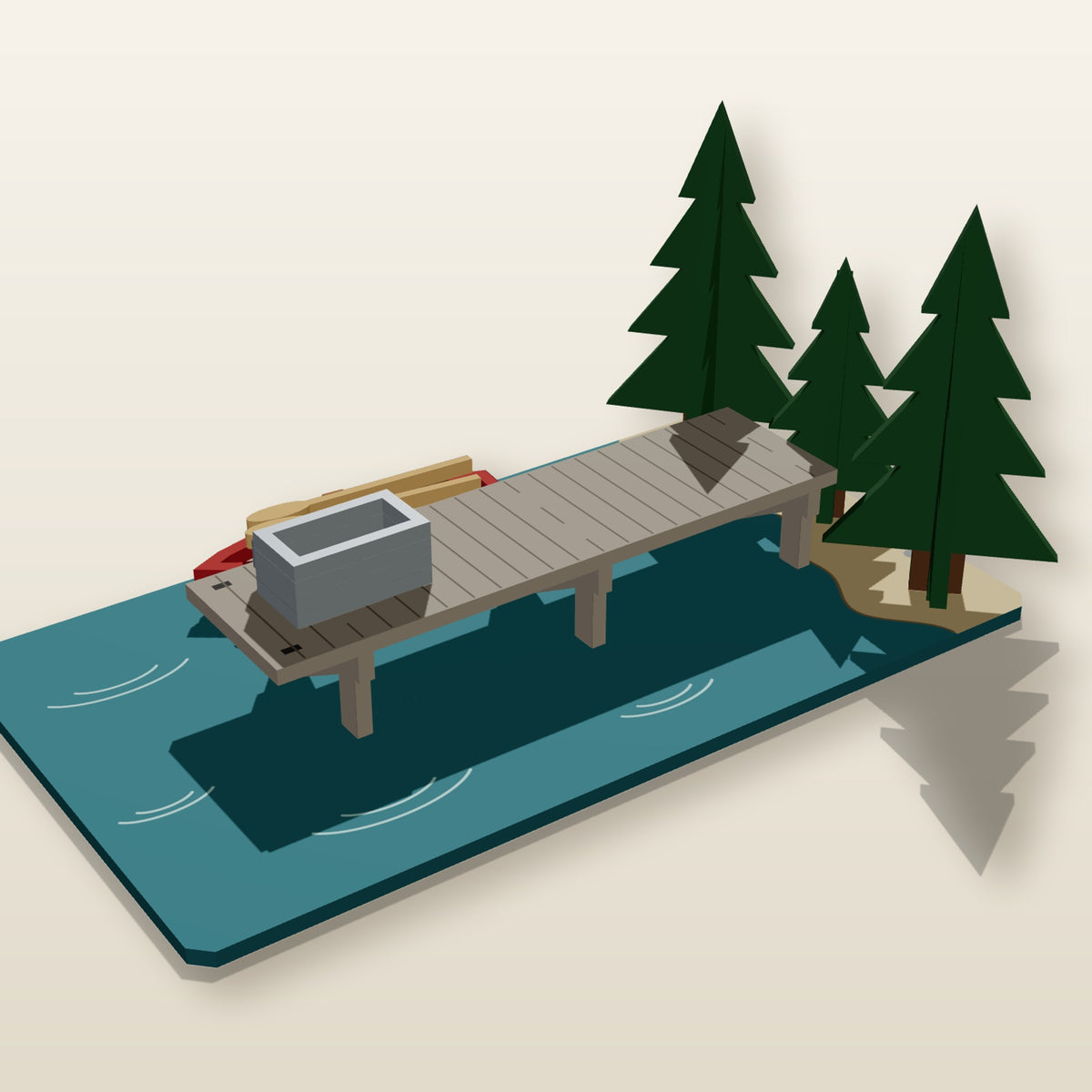

The Waterfront Scene pack is a little stretch of lake shore: a water base with a sandy shoreline, pebbles and scored ripples, a plank dock standing on three braced pilings, a layered rowboat with two seats and a pair of oars, a galvanized minnow tank with its own MINNOWS sign, and three slot-together pines. The dock locks into the base with tabs and slots, the boat and tank are simple glued stacks, and the trees stand up on their own.

What you get (instant download)

• SVG cut files for 2.7 mm, 3 mm or 4 mm plywood (pick the folder that matches your calipers)
• 23 pieces on 1 board, each 10 x 10 in
• Every piece as its own SVG, for recutting a single part
• A 9-page instruction booklet: cutting guide, board maps, parts list, 6 illustrated assembly steps and paint colors
• Finished-model mockup images

Finished size

• Water base: 160 x 90 mm (6.3 x 3.5 in), shoreline along the left end
• Dock: 110 x 30 mm deck (4.3 x 1.2 in), 19 mm (0.7 in) above the water
• Rowboat: 60 x 20 mm (2.4 x 0.8 in), three layers deep; oars 44 mm
• Minnow tank: 24 x 13 mm, 11 mm tall (0.9 x 0.5 x 0.4 in)
• Pines: Two 70 mm (2.8 in) and one 50 mm (2.0 in) tall

You'll need

• A laser cutter with at least a 10 x 10 in work area
• 2.7 mm, 3 mm or 4 mm plywood
• Wood glue, fine sandpaper, acrylic paints

Laser-friendly files

Black = cut, blue = score. Part labels are single-line lettering on the score layer, so they mark in the same quick pass - no engraving.

This is a digital download. No physical items will be shipped.

License

You may cut these files as often as you like and sell finished, physical models you make from them. Please don't share, resell or give away the digital files, or sell unassembled cut kits made from them without permission.
