Village Tackle Shop v4 - Laser-Cut SVG Files

DIGITAL DOWNLOAD - you get the laser-cut files to make this yourself. Nothing is shipped.

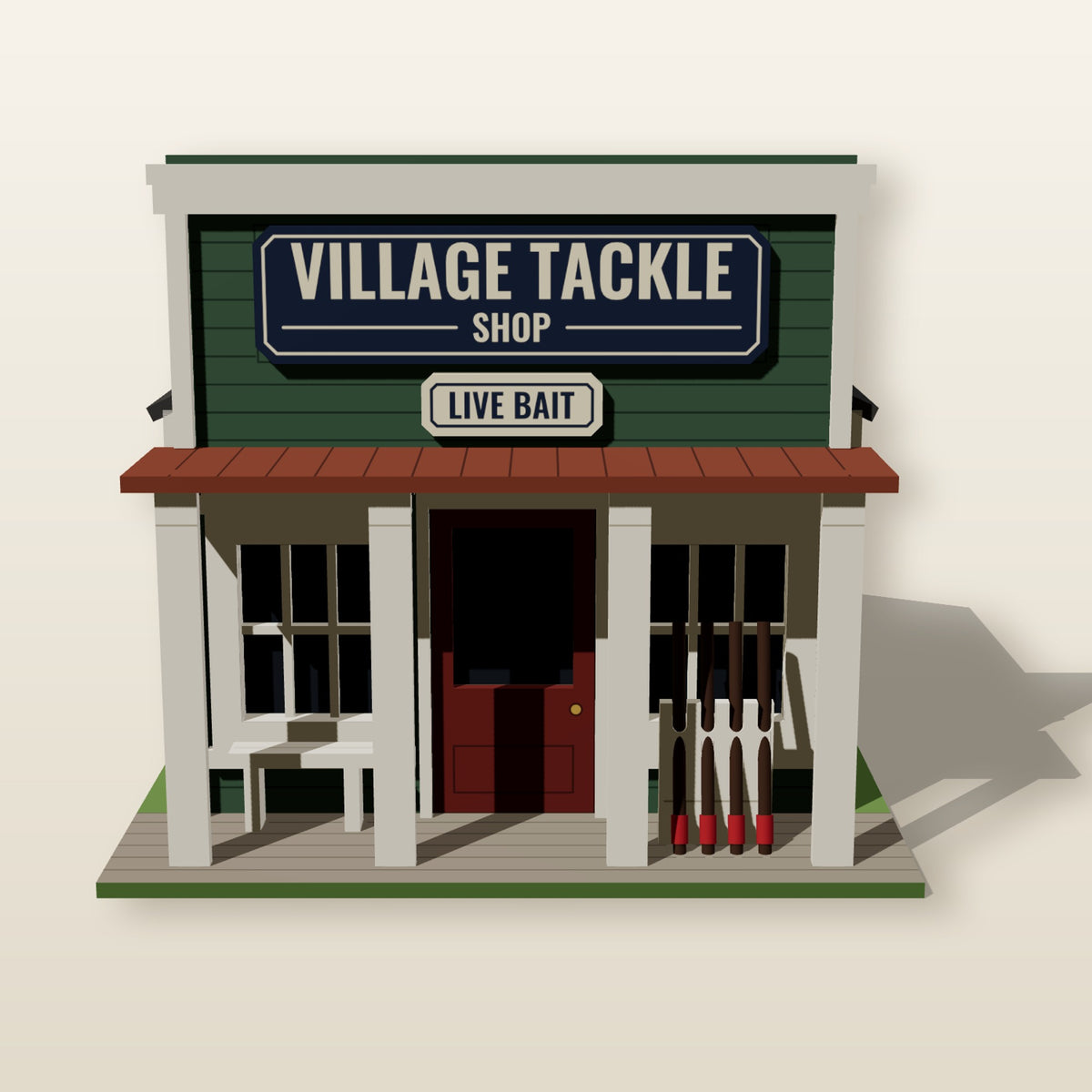

The Village Tackle Shop is an old-town storefront with a tall false front, scored clapboard siding, two six-pane display windows and a half-glass door. A covered porch runs across the front: a tin awning on four posts over a plank deck, with a bench under the window and a rod rack holding four laser-cut fishing rods. A cut-out VILLAGE TACKLE SHOP sign goes across the false front, with a LIVE BAIT sign to go with it. Glue-on casings, sills, corner boards and a one-piece cornice give the walls real depth. The walls lock into the base with tabs and slots, the corners join with box fingers, and a hidden truss carries the roof.

What you get (instant download)

• SVG cut files for 2.7 mm, 3 mm or 4 mm plywood (pick the folder that matches your calipers)
• 40 pieces on 3 boards, each 10 x 10 in
• Every piece as its own SVG, for recutting a single part
• An 11-page instruction booklet: cutting guide, board maps, parts list, 8 illustrated assembly steps and paint colors

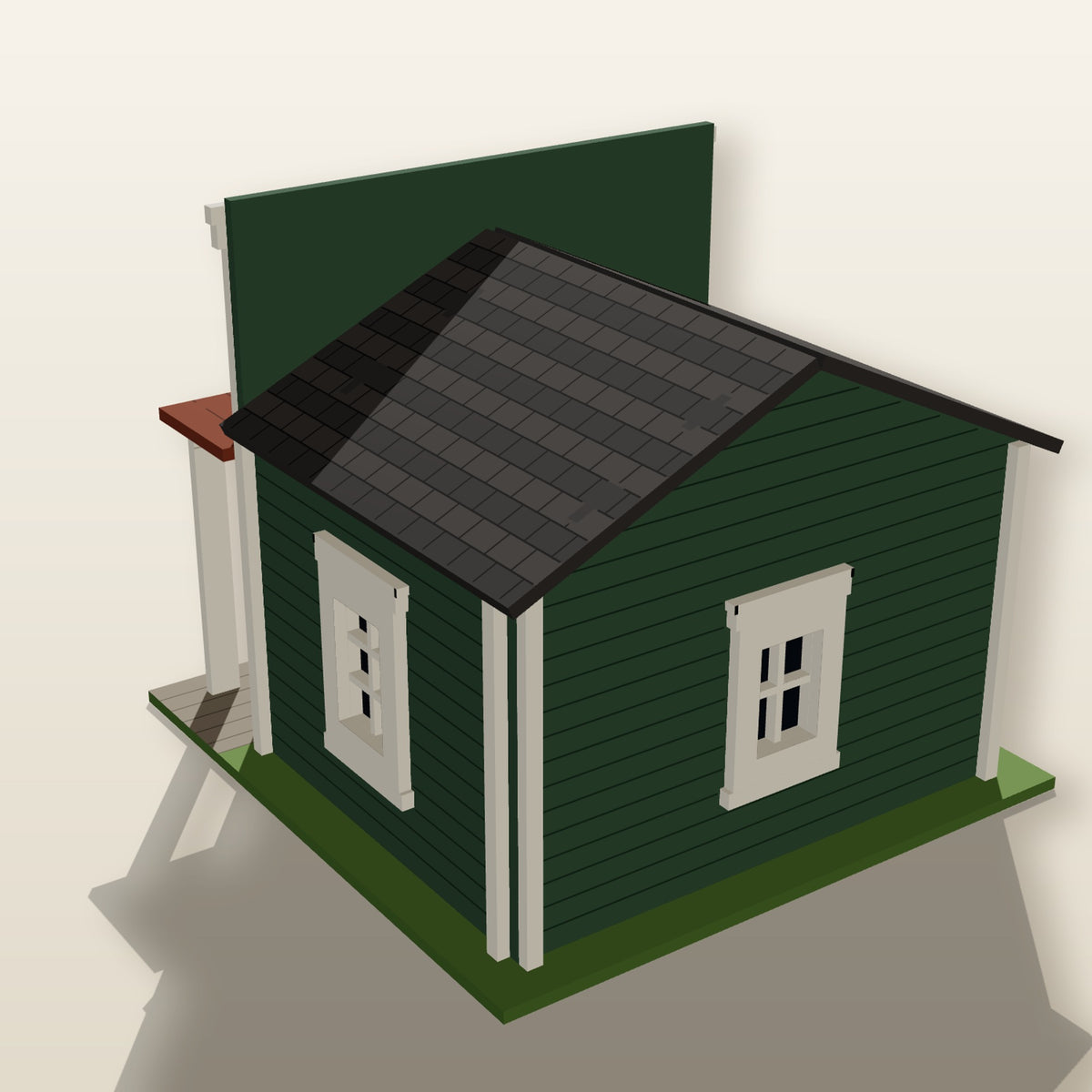

• Finished-model mockup images

Finished size

• Building: 120 x 100 mm (4.7 x 3.9 in) walls, 75 mm (3.0 in) to the eaves
• False front: 120 mm (4.7 in) tall; the 25 degree gable roof peaks at 103 mm (4.1 in), hidden behind it
• Overall: About 123 mm (4.8 in) tall on its base
• Base: 140 x 145 mm (5.5 x 5.7 in), with a 35 mm (1.4 in) plank porch deck in front
• Porch: Awning 128 x 30 mm (5.0 x 1.2 in) on four posts, 66 mm (2.6 in) above the deck
• Signs: Main sign 90 x 24 mm (3.5 x 0.9 in) · LIVE BAIT sign 32 x 11 mm (1.3 x 0.4 in)

You'll need

• A laser cutter with at least a 10 x 10 in work area
• 2.7 mm, 3 mm or 4 mm plywood
• Wood glue, fine sandpaper, acrylic paints

Laser-friendly files

Black = cut, blue = score. Part labels are single-line lettering on the score layer, so they mark in the same quick pass - no engraving.

This is a digital download. No physical items will be shipped.

License

You may cut these files as often as you like and sell finished, physical models you make from them. Please don't share, resell or give away the digital files, or sell unassembled cut kits made from them without permission.
