Village Tackle Shop - Laser-Cut SVG Files

DIGITAL DOWNLOAD - you get the laser-cut files to make this yourself. Nothing is shipped.

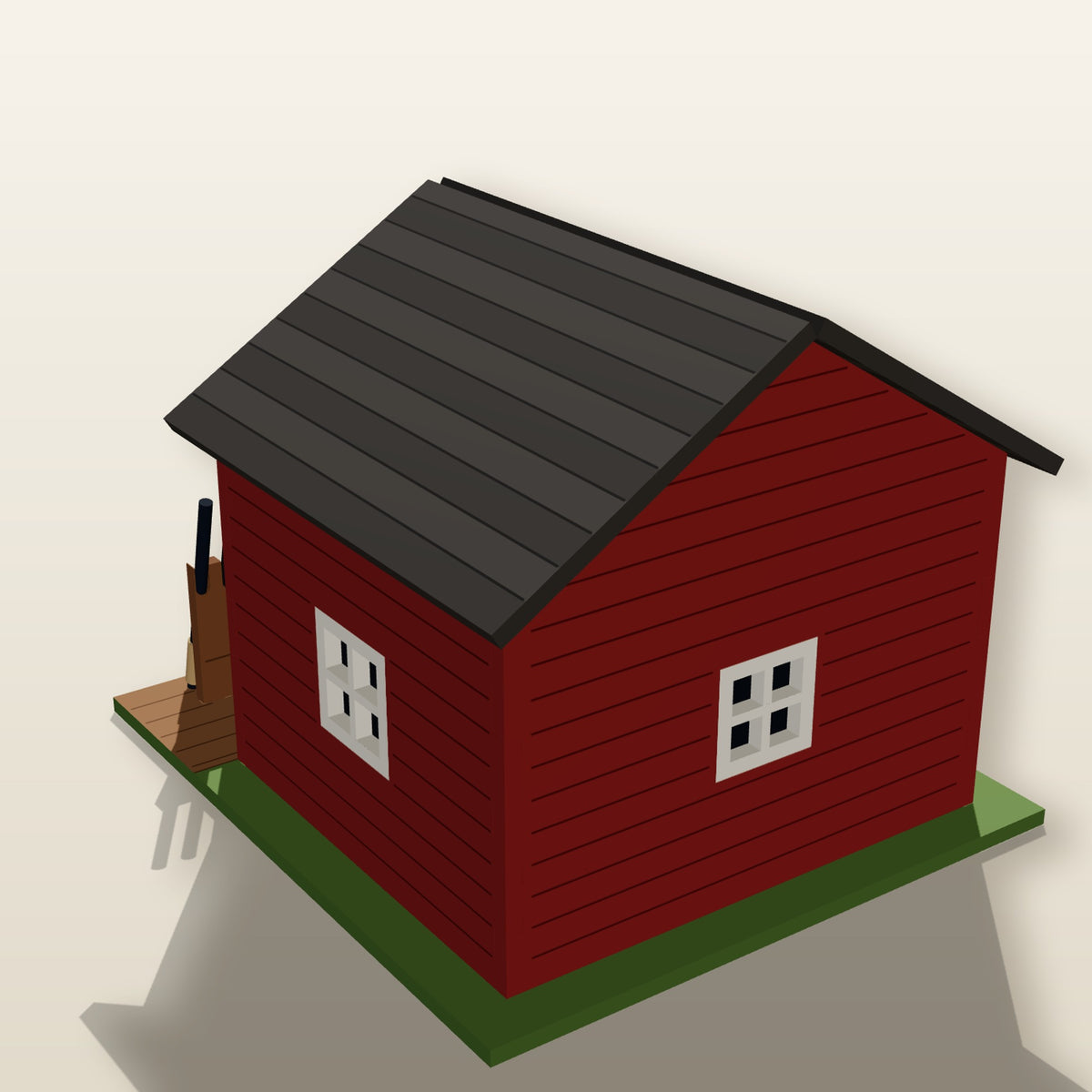

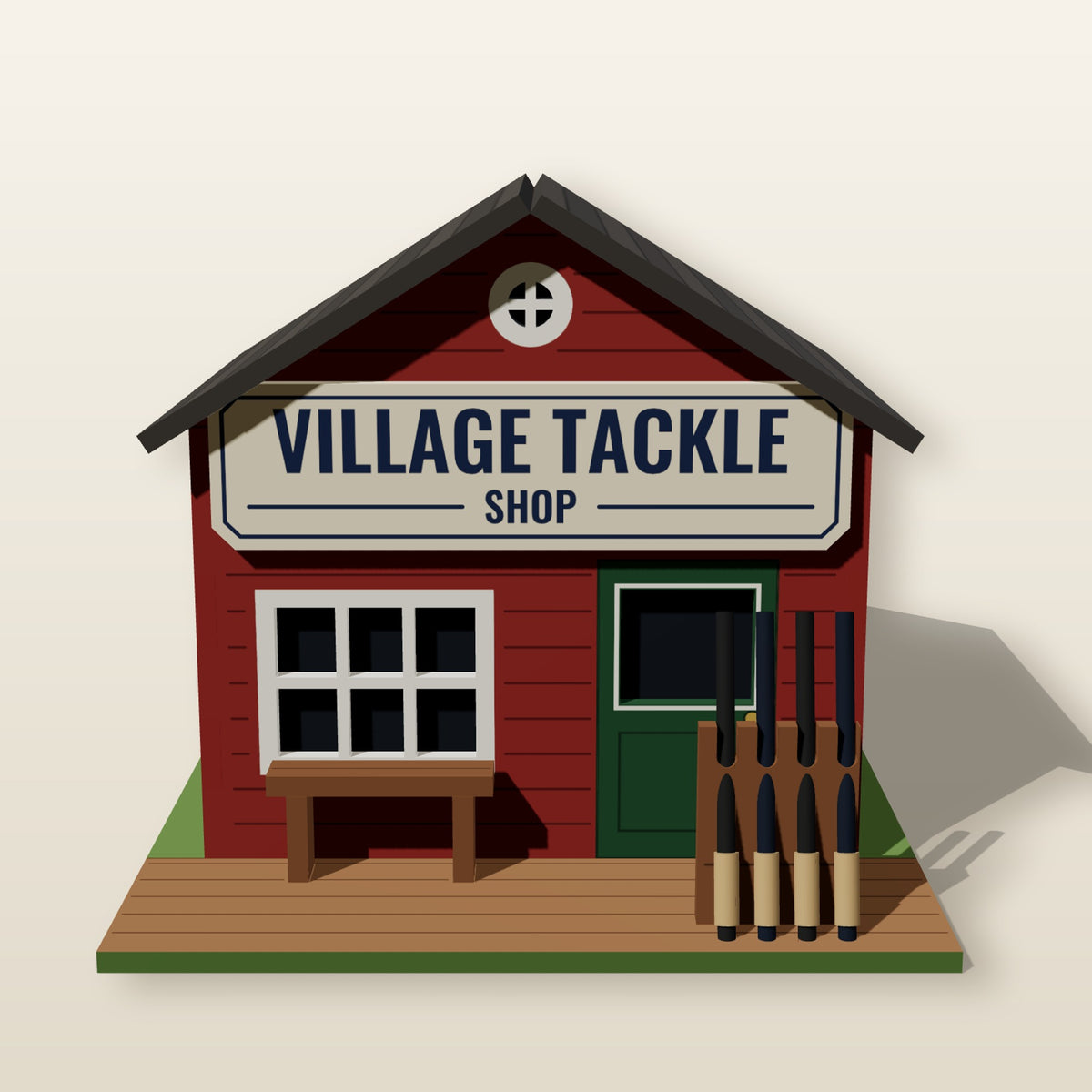

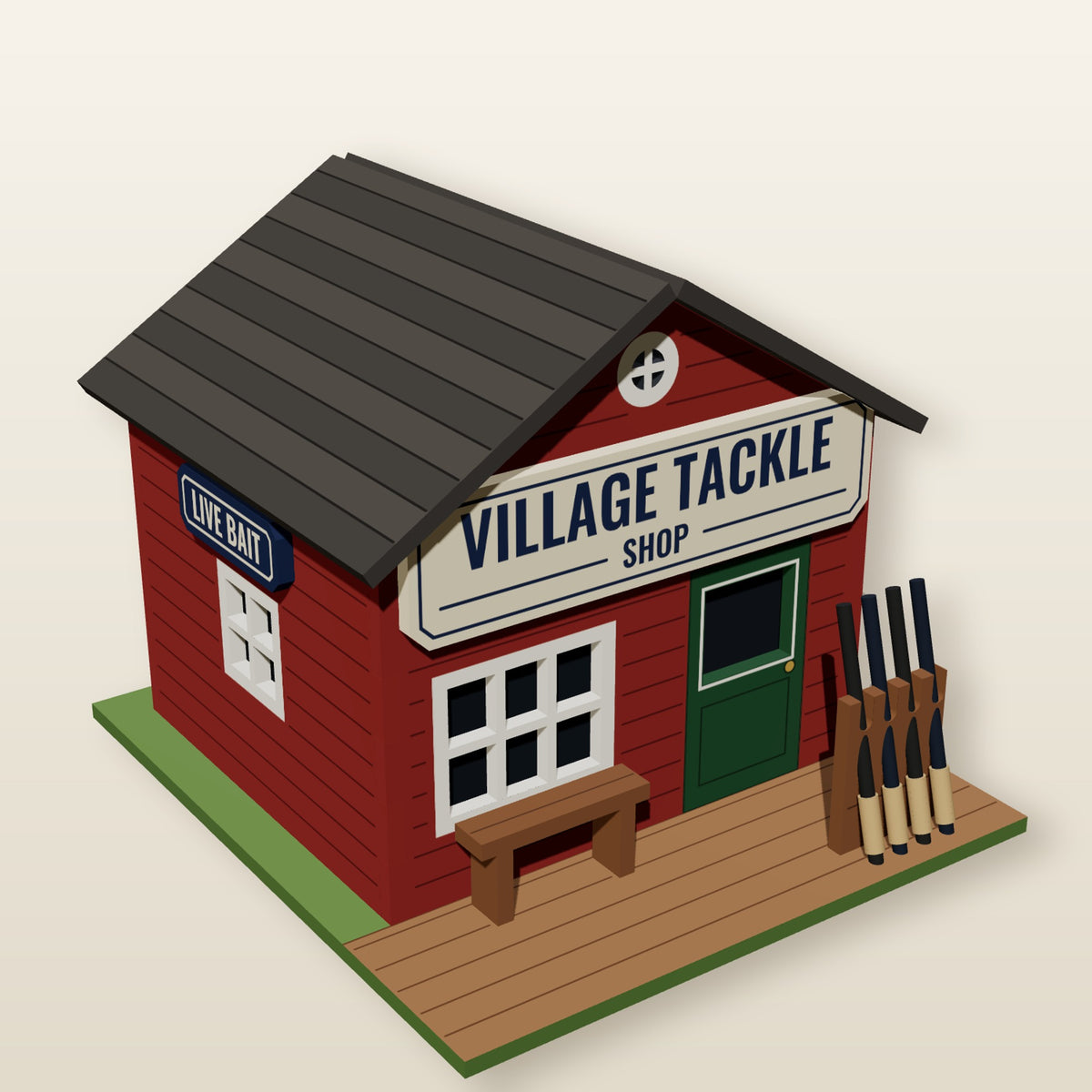

The Village Tackle Shop is a little gable-front bait shop with scored clapboard siding, a six-pane shop window, a screen door and a round attic window. A cut-out VILLAGE TACKLE SHOP sign goes across the gable, a LIVE BAIT sign hangs on the side, and the plank porch out front has its own bench and a rod rack that holds four toothpick fishing rods. Every wall locks into the base with tabs and slots, and the corners join with interlocking box fingers.

What you get (instant download)

• SVG cut files for 2.7 mm, 3 mm or 4 mm plywood (pick the folder that matches your calipers)
• 13 pieces on 2 boards, each 10 x 10 in
• Every piece as its own SVG, for recutting a single part
• A 9-page instruction booklet: cutting guide, board maps, parts list, 8 illustrated assembly steps and paint colors
• Finished-model mockup images

Finished size

• Building: 90 x 80 mm (3.5 x 3.1 in) walls, 60 mm (2.4 in) to the eaves
• Height: 88 mm (3.5 in) to the ridge line, about 94 mm (3.7 in) overall with base and roof; 32 degree roof pitch
• Base: 106 x 120 mm (4.2 x 4.7 in), with a 32 mm (1.3 in) plank porch deck in front
• Signs: Main sign 84 x 22 mm (3.3 x 0.9 in) · LIVE BAIT sign 32 x 11 mm (1.3 x 0.4 in)

You'll need

• A laser cutter with at least a 10 x 10 in work area
• 2.7 mm, 3 mm or 4 mm plywood
• Wood glue, fine sandpaper, acrylic paints
• Optional: a battery LED tea light (never a real flame)

Laser-friendly files

Black = cut, blue = score. Part labels are single-line lettering on the score layer, so they mark in the same quick pass - no engraving.

This is a digital download. No physical items will be shipped.

License

You may cut these files as often as you like and sell finished, physical models you make from them. Please don't share, resell or give away the digital files, or sell unassembled cut kits made from them without permission.
