Lighted Lighthouse with Keeper's Cottage - Personalized Laser-Cut SVG File

A striped 3D lighthouse with a keeper's cottage that glows with an LED tea light, with a name and year engraved on the cottage roof.

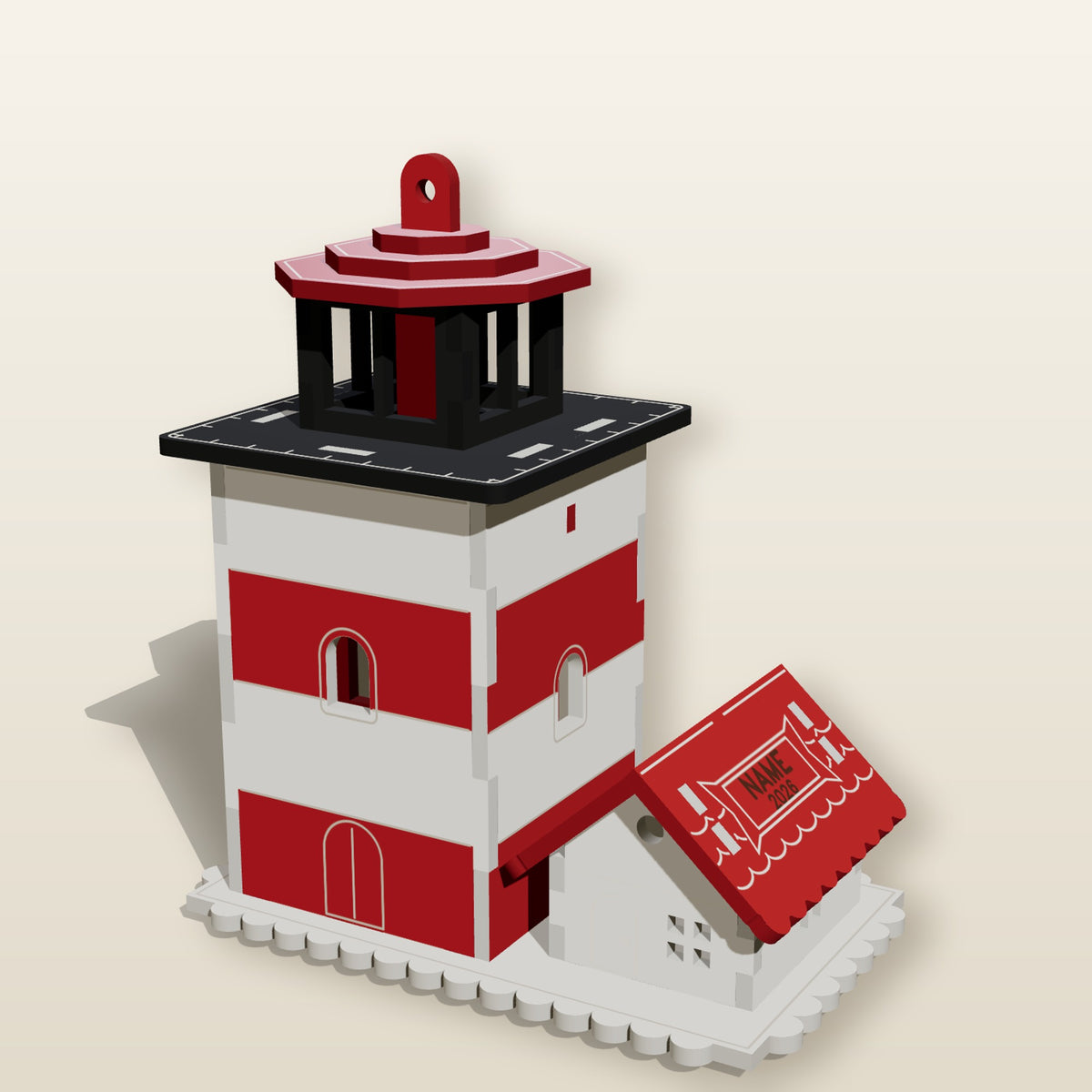

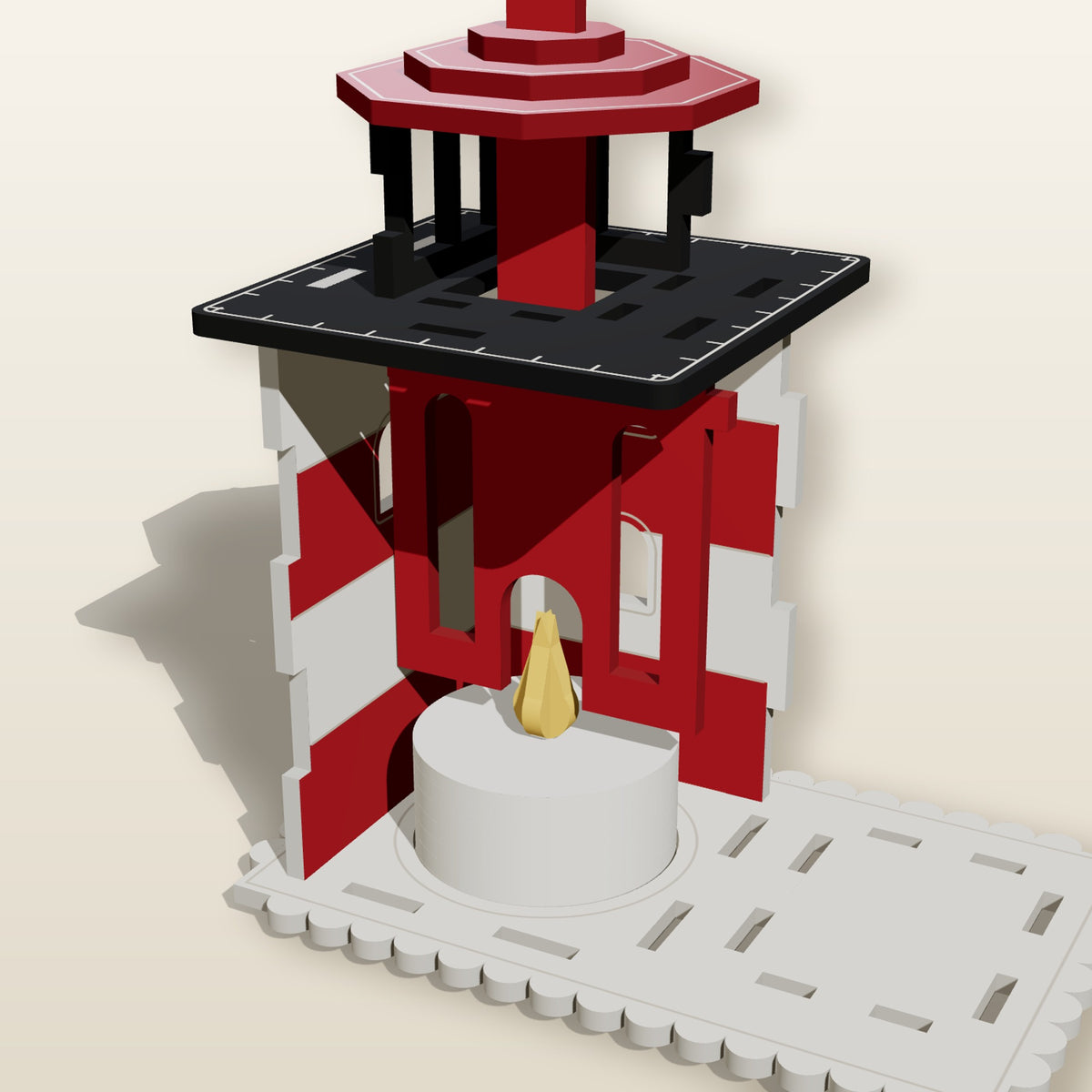

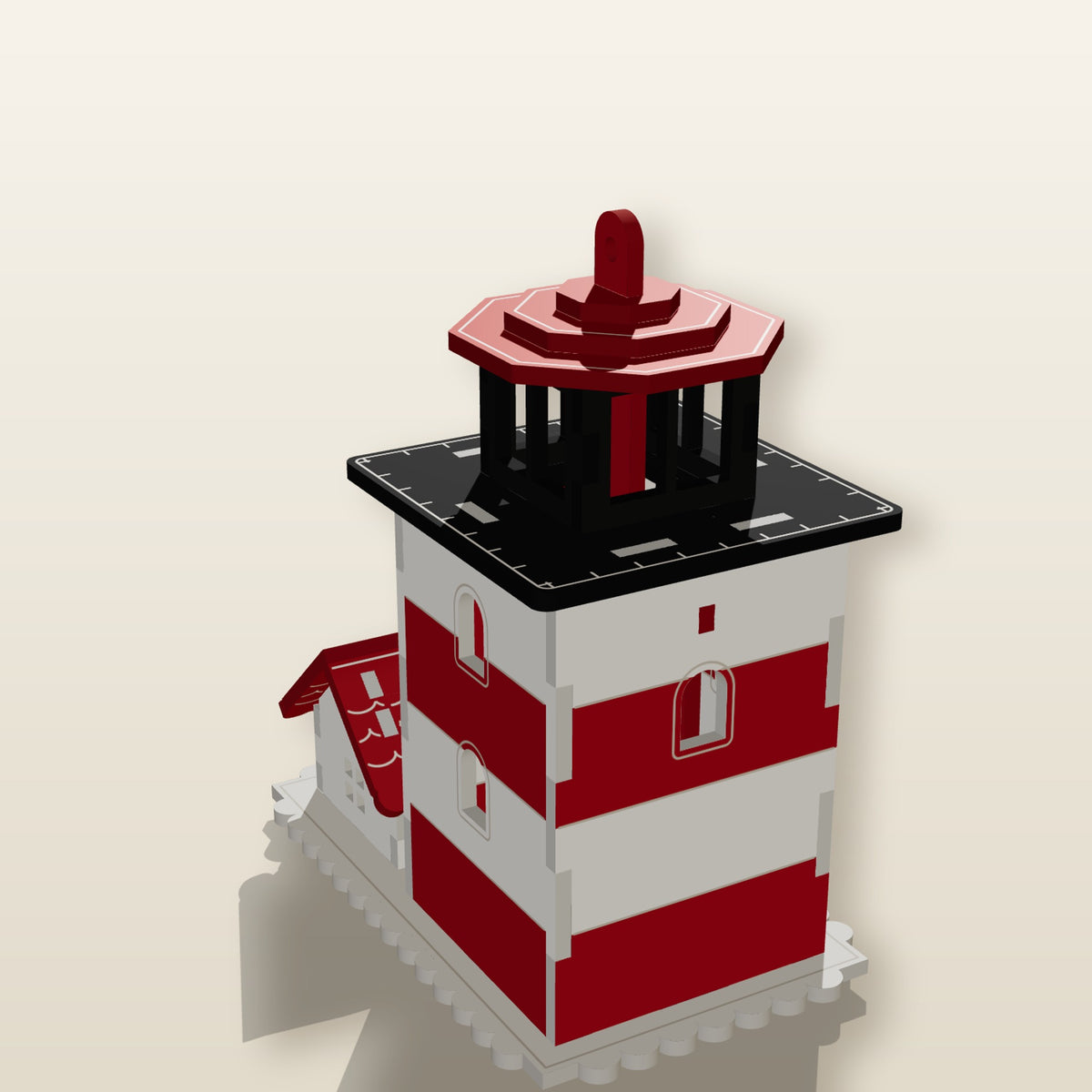

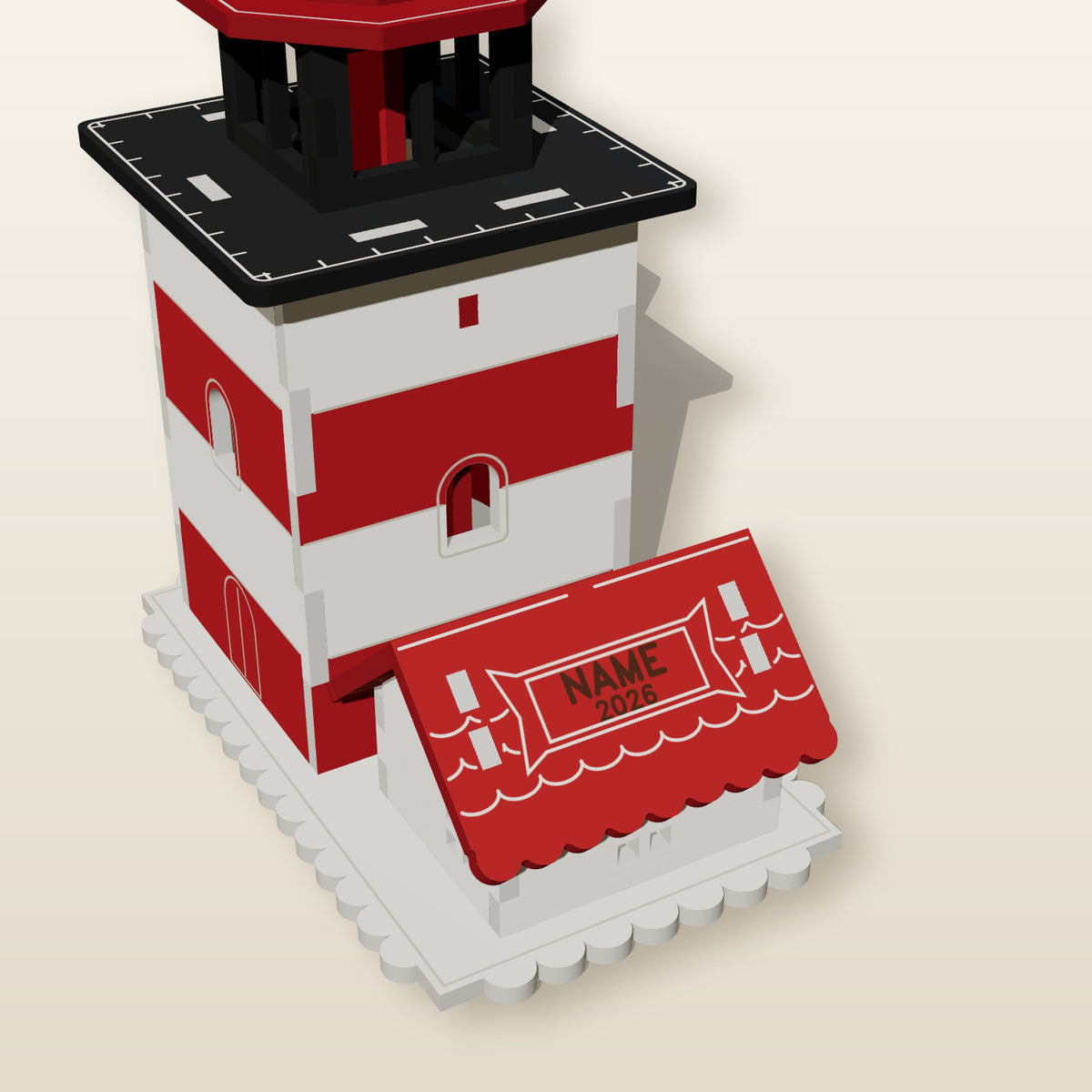

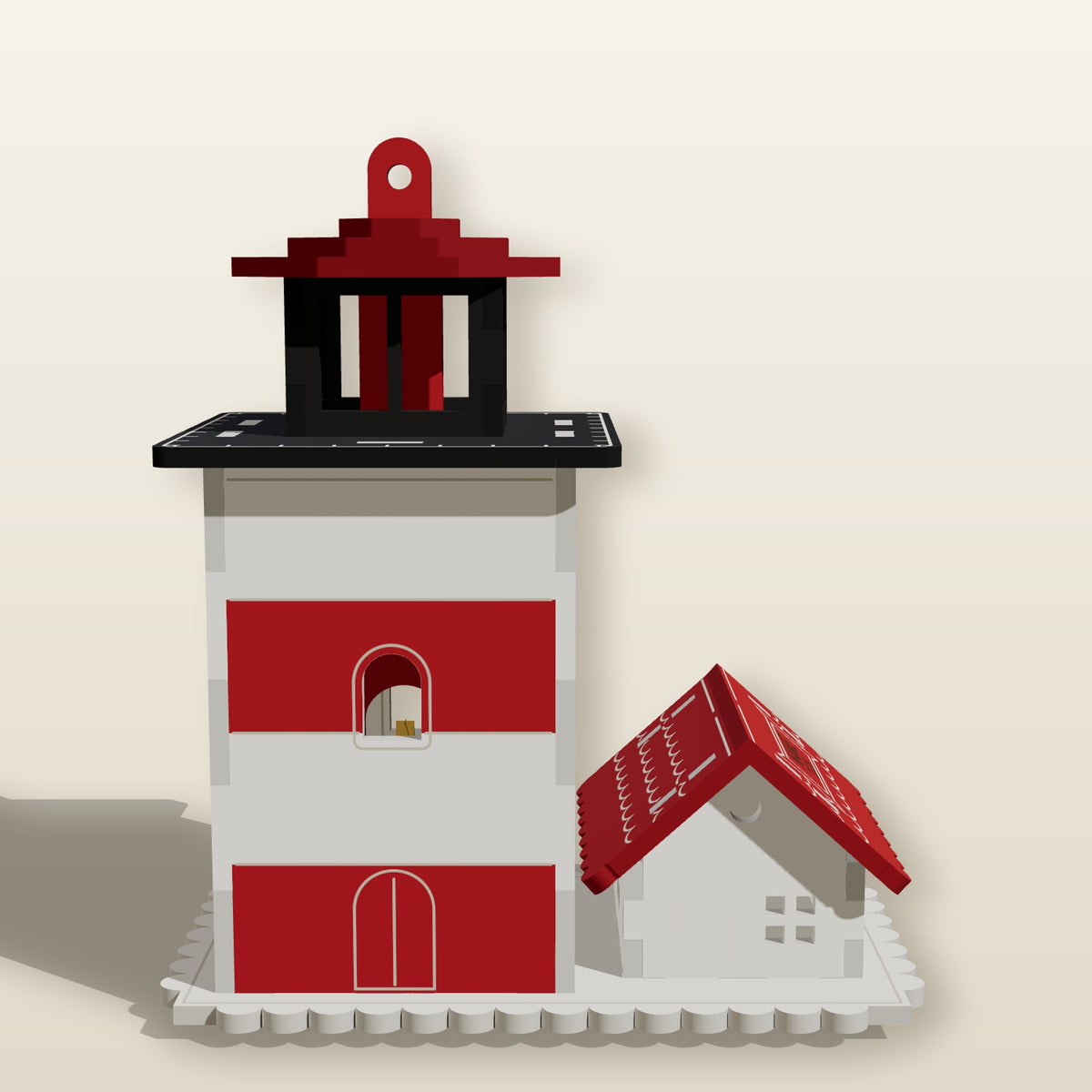

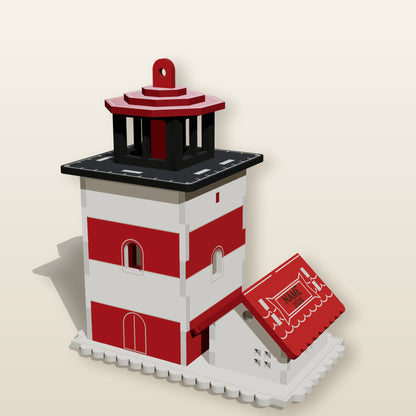

A little red-and-white lighthouse that lights up. A battery LED tea light drops in from the top into a round hole in the base before the tower goes on, and glows through the arched windows climbing the tower and up into the lantern room. It has a striped tower with a scored door, a gallery deck with a railing, a four-sided lantern room, a stepped three-tier dome and a keeper's cottage beside it with the name and year in a ribbon banner on its roof. The name is an editable red engrave layer: type in a name, engrave, cut, build. A centre piece inside the tower carries the ribbon hole at the very top. It's made to sit on a shelf, mantel or windowsill, and it can hang on the tree too - hung from its ribbon it leans slightly toward the cottage. Every piece locks with tabs and slots - no glue needed - and the tower lifts off the base to change the battery. Files for 2.7, 3 and 4 mm plywood.

What you get

• SVG cut files for 2.7 mm, 3 mm or 4 mm plywood (pick the folder that matches your calipers)
• 20 pieces on 1 board (10 x 10 in), every piece held in by tiny holding tabs
• An editable red ENGRAVE layer for the name and year
• Every piece as its own SVG, for recutting a single part
• A 20-page assembly booklet that shows every move piece by piece, ready to print, fold and staple

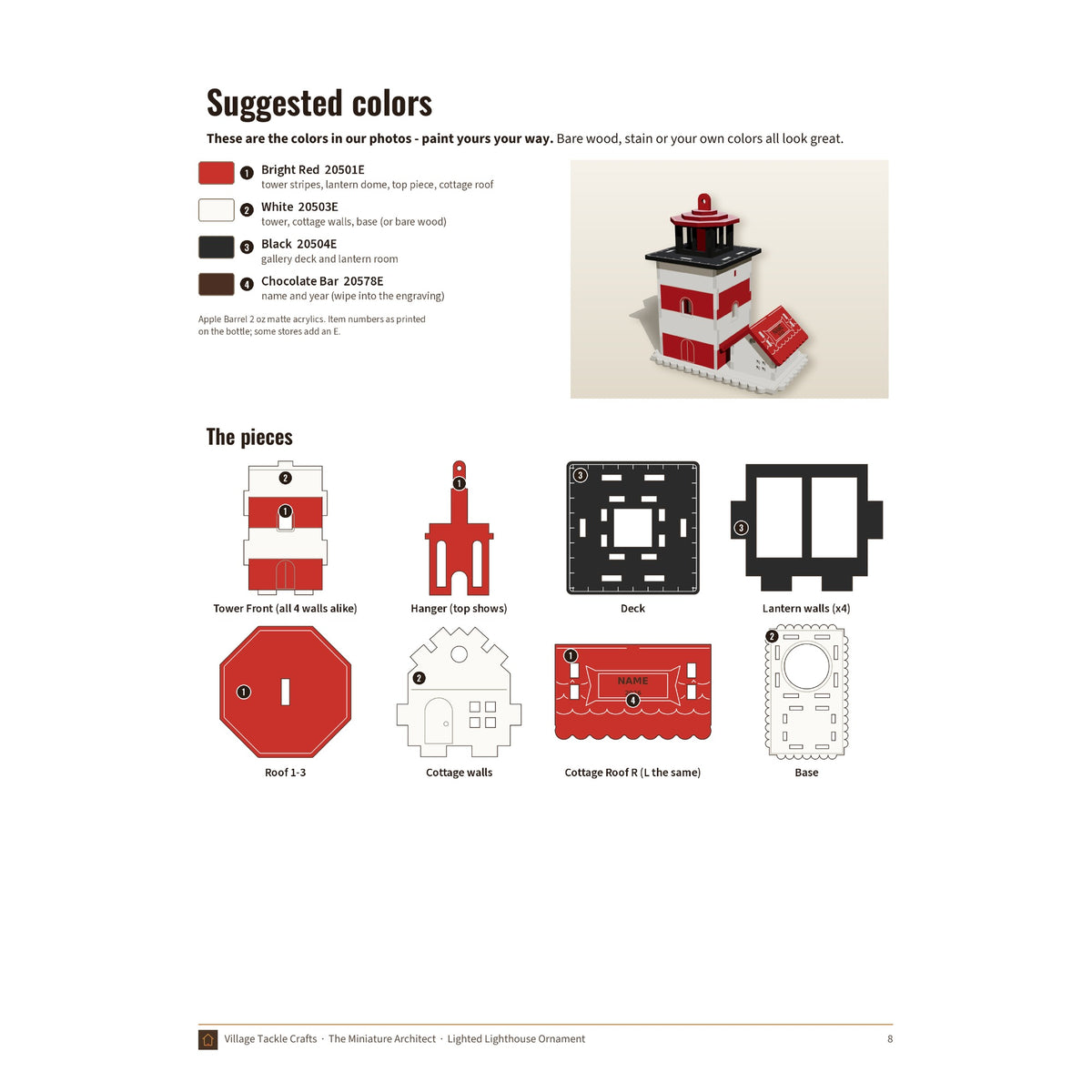

• Suggested Colors pages: a paint map with Apple Barrel colors and item numbers (a suggestion - paint yours your way)
• A laser instruction booklet: cutting guide, board map, parts list and paint colors
• An actual-size parts finder and finished-model mockup images

Finished size

• 123 mm (4.9 in) tall to the top, 60 x 101 mm (2.4 x 4 in) base (at 2.7 mm plywood)
• Name banner about 25 x 10 mm - a name up to about 8 letters plus the year

You'll need

• A laser cutter with at least a 10 x 10 in work area, and software that edits SVG text (xTool Creative Space, LightBurn, Glowforge and others)
• 2.7 mm, 3 mm or 4 mm plywood
• One battery LED tea light, the common size about 1.5 in (37 mm) across with a stepped bottom (not included)
• Fine sandpaper, acrylic paints or a paint pen, ribbon or twine if you want to hang it

Laser-friendly files

Red = engrave (name and year), blue = score (stripe bands, window frames, door, railing, roof scallops and the part names - single-stroke, no engraving), black = cut, green = the big outlines that cut last. Small pieces cut before the big outlines.

Want one ready to build? The Lighted Lighthouse Ornament - Boxed Wood Kit comes cut, with the tea light in the box.

This is a digital download. No physical items will be shipped.

License

You may cut these files as often as you like and sell finished, physical lighthouses you make from them. Please don't share, resell or give away the digital files, or sell unassembled cut kits made from them without permission.
