Lighted Farm Barn Ornament - Personalized Laser-Cut SVG File

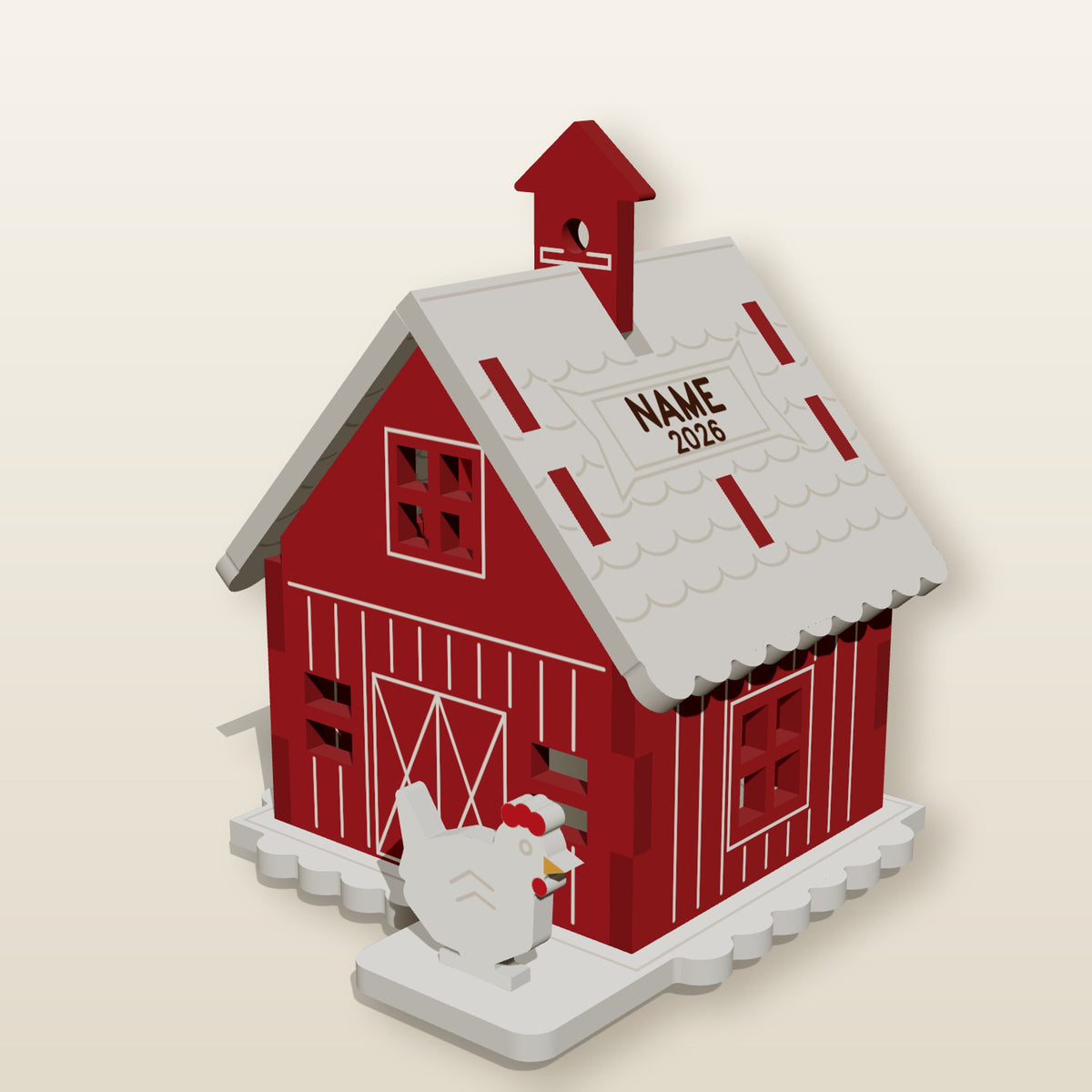

A little red 3D barn ornament that glows with an LED tea light, with a hen out front and a name and year engraved on its roof.

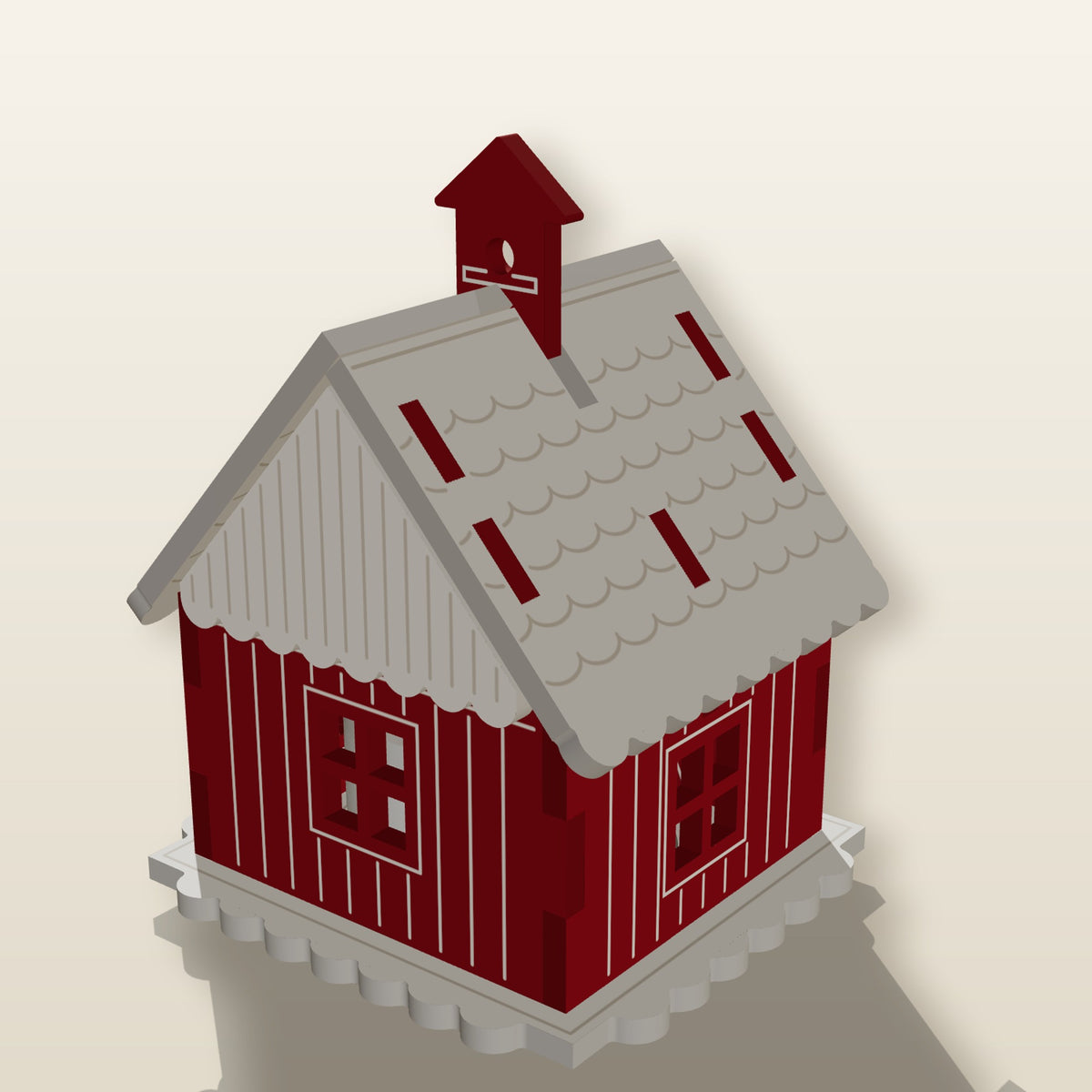

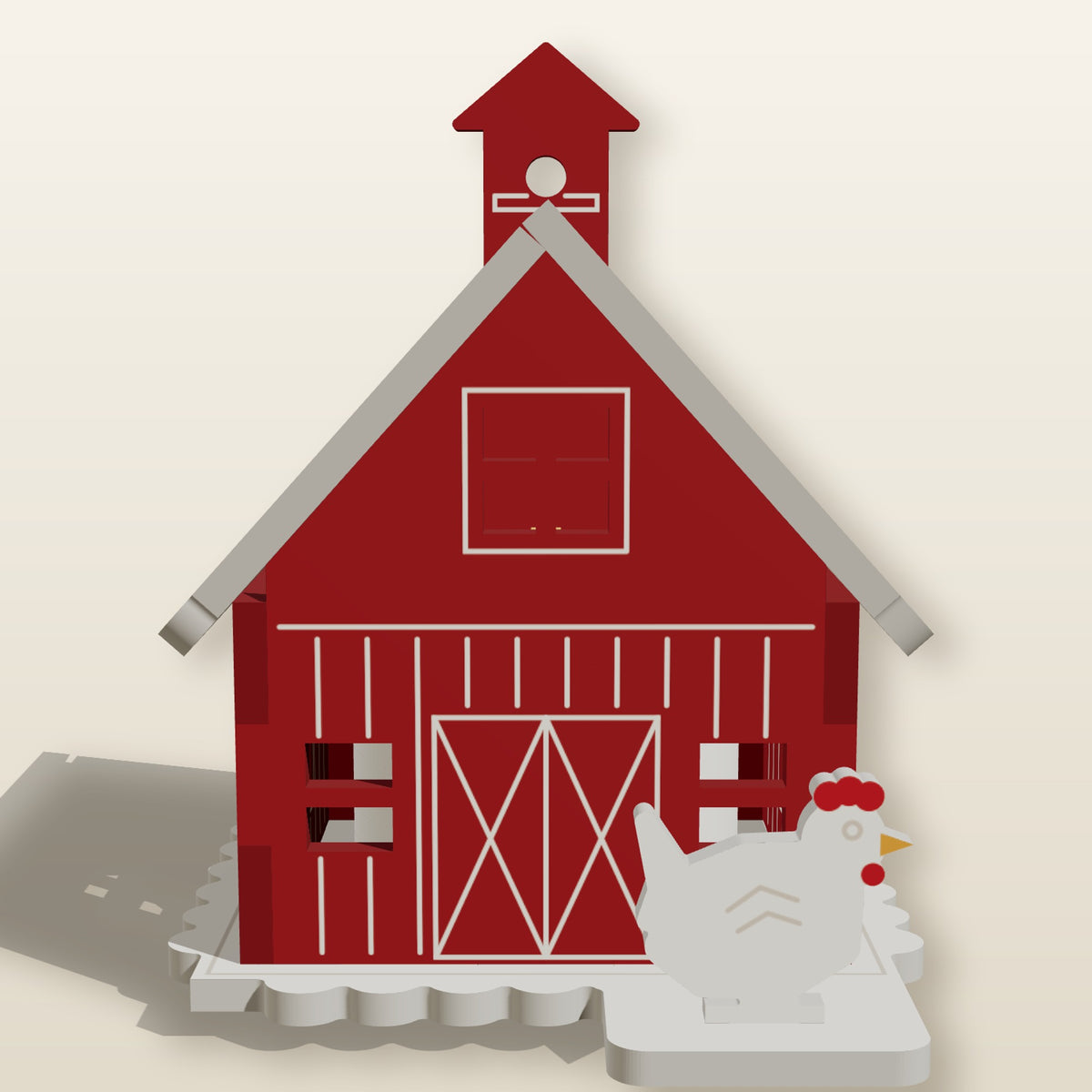

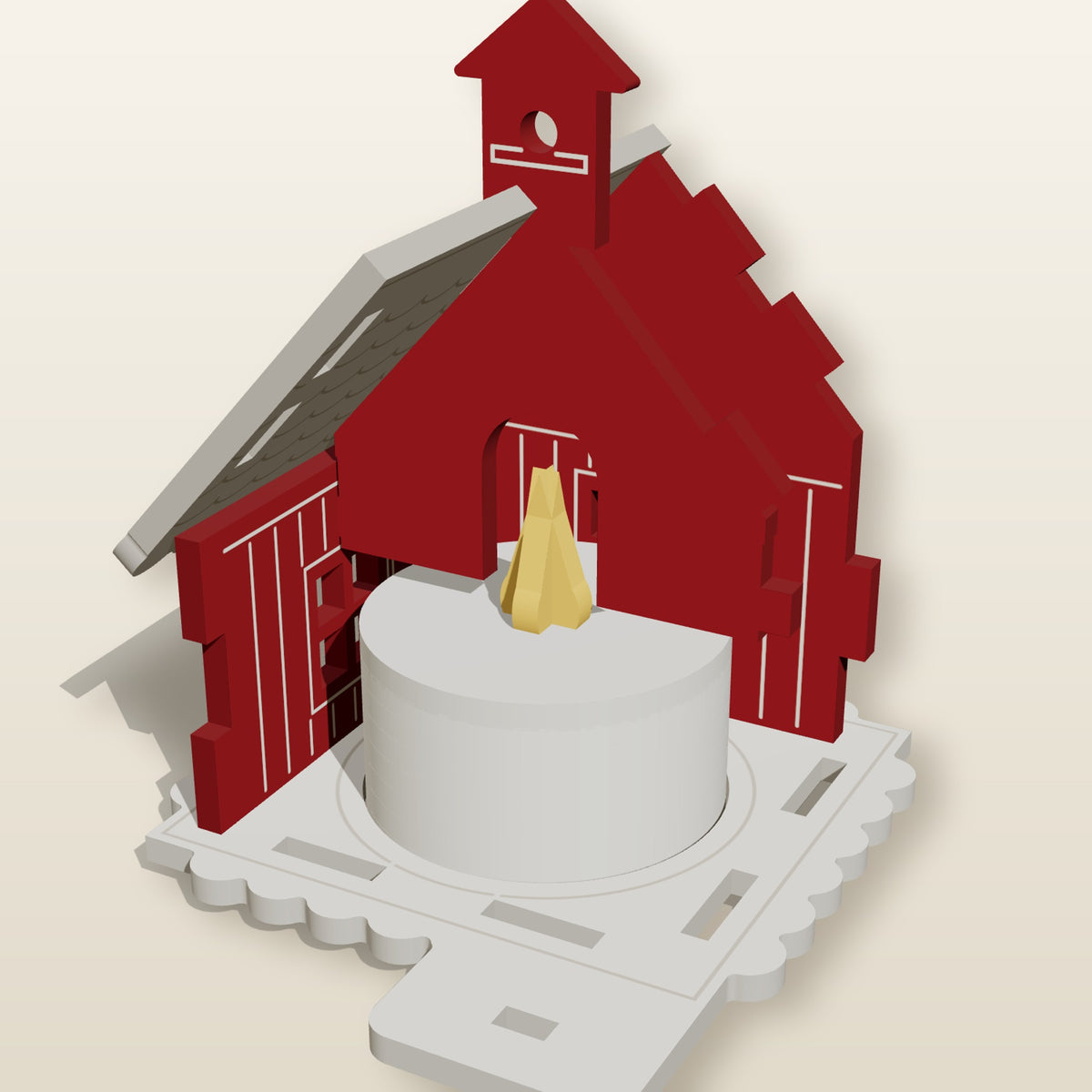

A little red barn to hang on the tree - and it lights up. A battery LED tea light drops in from the top into a round hole in the base before the walls go on, and glows through the hay-loft window and the side windows. Its switch faces down through the hole, so you can turn it on without taking the barn apart. It has X-braced barn doors, scored board siding, a scalloped snowy roof, a cupola on top with the ribbon hole and a white hen standing on the ledge out front. The cupola is the top of a wall that hangs across the middle of the barn, so the ornament hangs level instead of tipping. The name and year sit in a ribbon banner on the roof as an editable red engrave layer: type in a name, engrave, cut, build. Every structural piece locks with tabs and slots - only the back gable trim is glued on, and the hen stands in her own slot. Files for 2.7, 3 and 4 mm plywood.

What you get

• SVG cut files for 2.7 mm, 3 mm or 4 mm plywood (pick the folder that matches your calipers)
• 10 pieces on 1 board (10 x 10 in, uses about half of it), every piece held in by tiny holding tabs
• An editable red ENGRAVE layer for the name and year
• Every piece as its own SVG, for recutting a single part
• A 16-page assembly booklet that shows every move piece by piece, ready to print, fold and staple

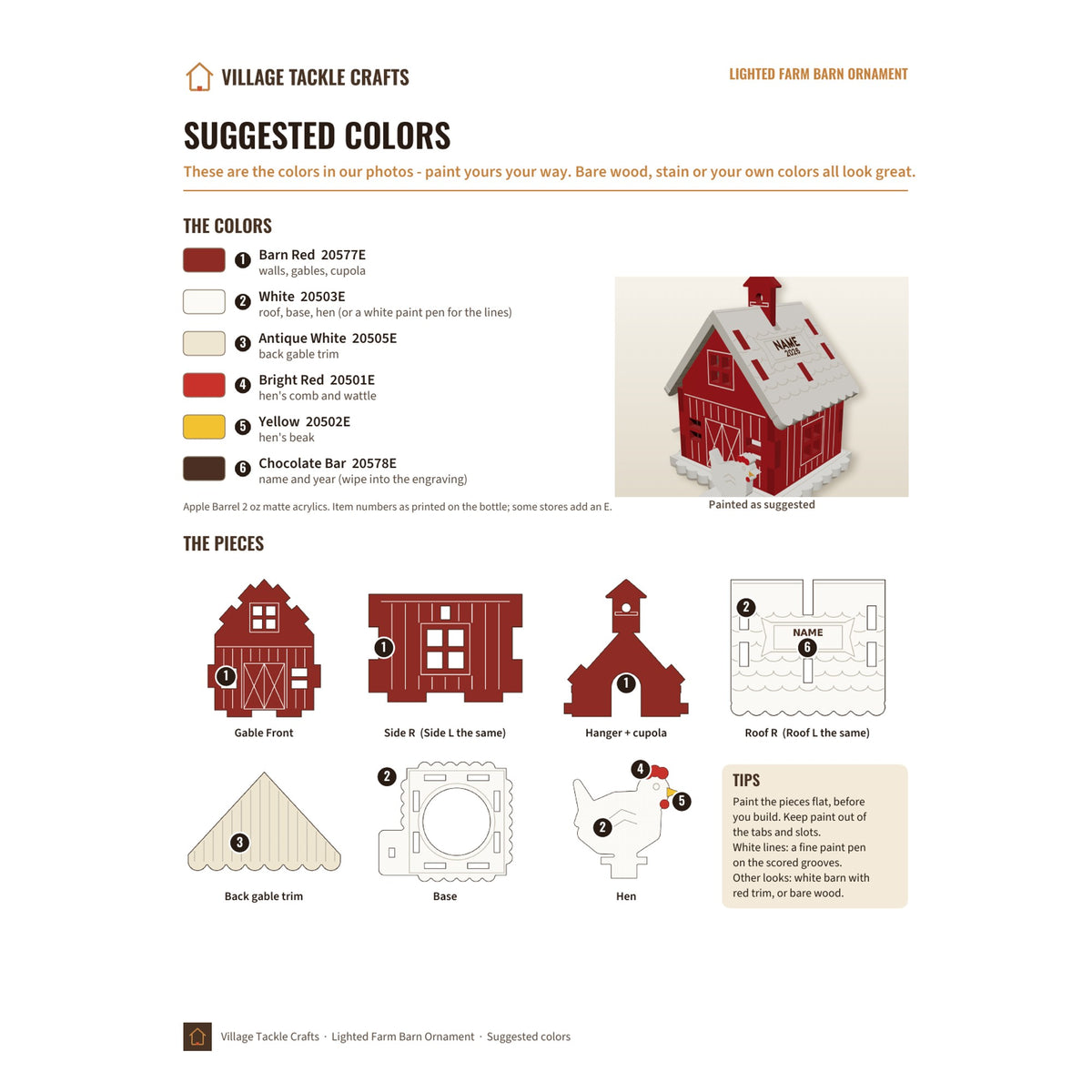

• Suggested Colors pages: a paint map with Apple Barrel colors and item numbers (a suggestion - paint yours your way)
• A laser instruction booklet: cutting guide, board map, parts list and paint colors
• An actual-size parts finder and finished-model mockup images

Finished size

• 77 mm (3.0 in) tall to the top of the cupola, 68 x 57 mm base with the hen ledge (at 2.7 mm plywood)

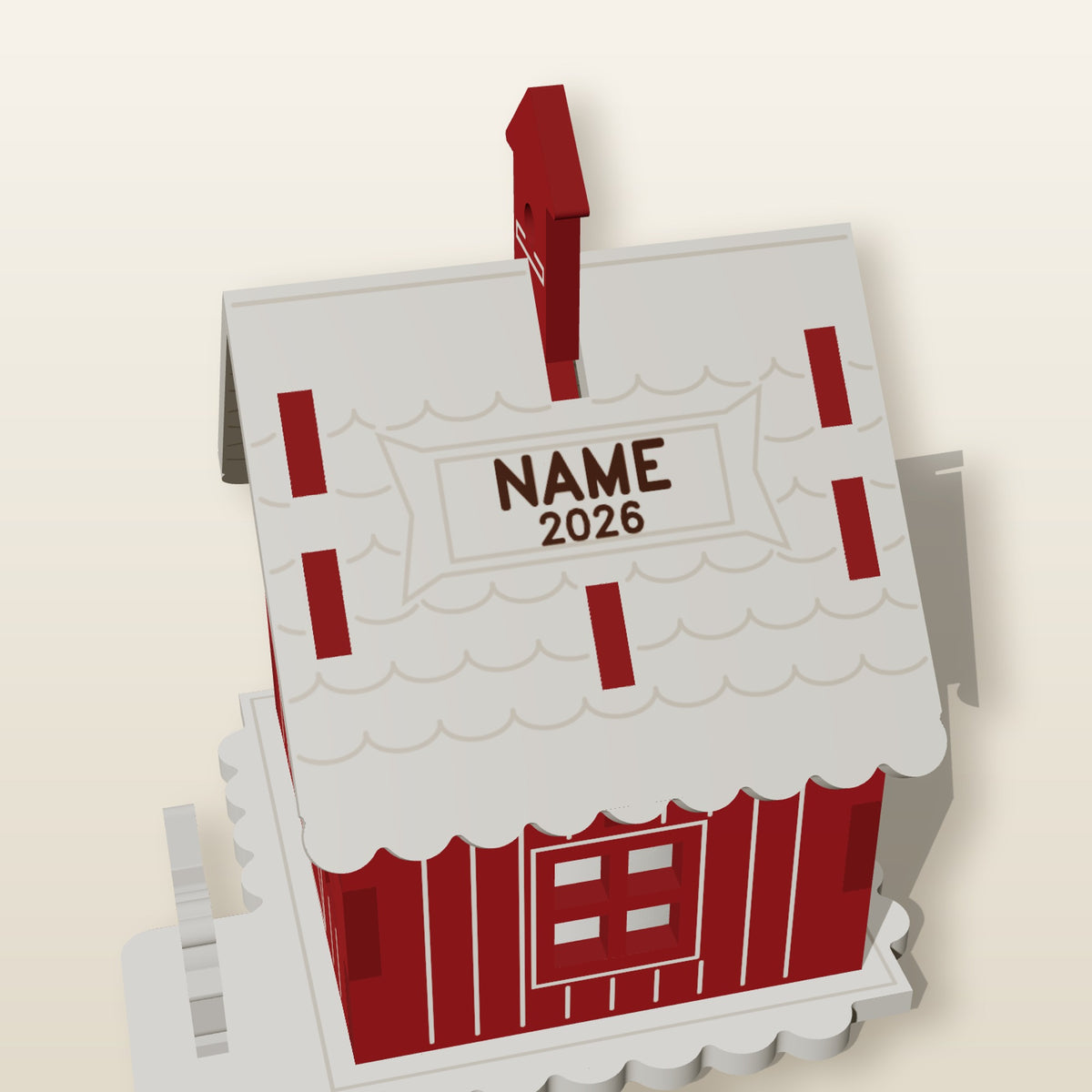

• Name banner about 22 x 8 mm - a name up to about 8 letters plus the year

You'll need

• A laser cutter with at least a 10 x 10 in work area, and software that edits SVG text (xTool Creative Space, LightBurn, Glowforge and others)
• 2.7 mm, 3 mm or 4 mm plywood
• One battery LED tea light, the common size about 1.5 in (37 mm) across with a stepped bottom (not included)
• Fine sandpaper, acrylic paints or a white paint pen, ribbon or twine; wood glue is optional

Laser-friendly files

Red = engrave (name and year), blue = score (board siding, barn-door X, window frames, roof scallops, the hen's wing and the part names - single-stroke, no engraving), black = cut. Small pieces cut before the big outlines.

Want one ready to build? The Lighted Farm Barn Ornament - Boxed Wood Kit comes cut, with the tea light in the box.

This is a digital download. No physical items will be shipped.

License

You may cut these files as often as you like and sell finished, physical ornaments you make from them. Please don't share, resell or give away the digital files, or sell unassembled cut kits made from them without permission.
