Laundry Room - Laser-Cut SVG Files

DIGITAL DOWNLOAD - you get the laser-cut files to make this yourself. Nothing is shipped.

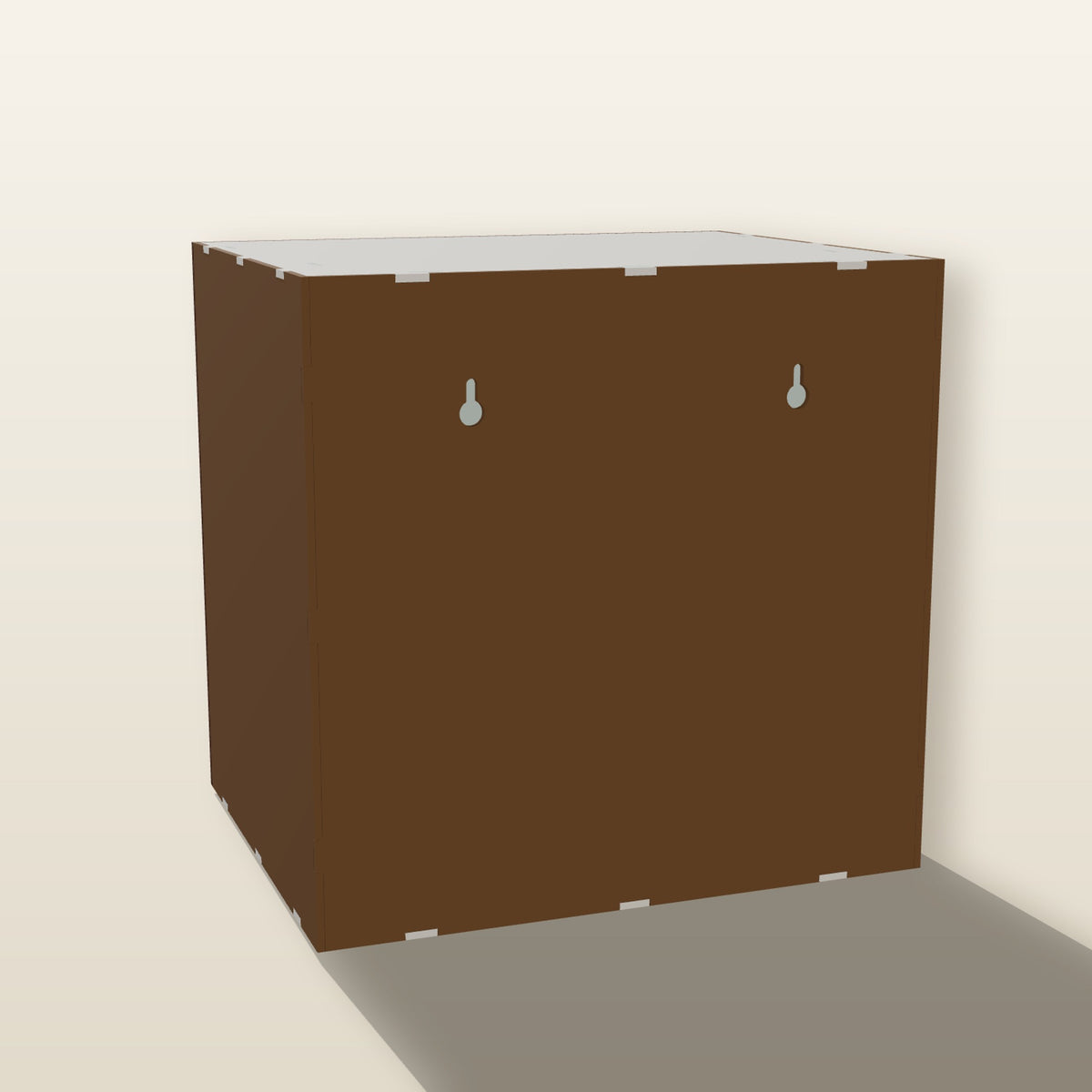

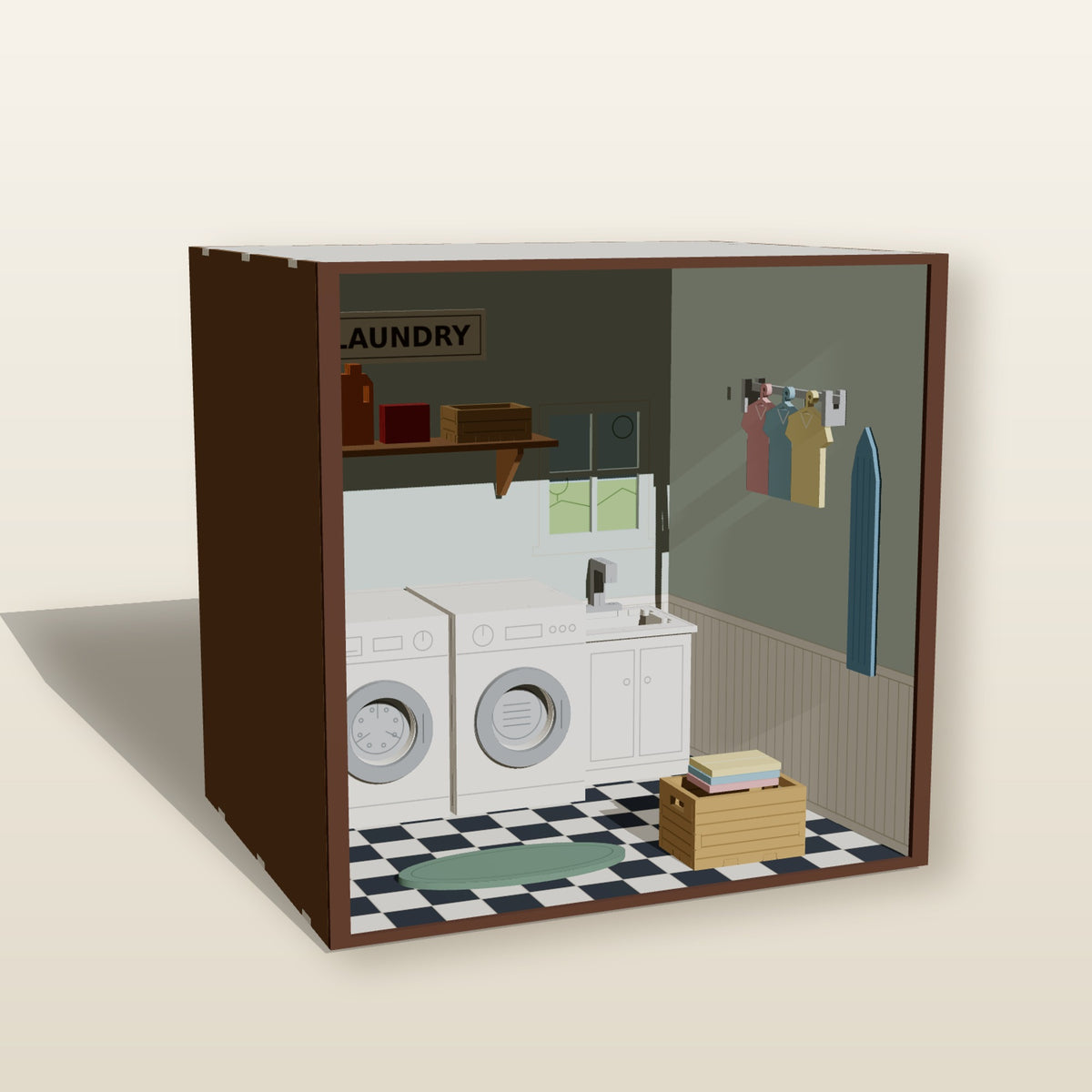

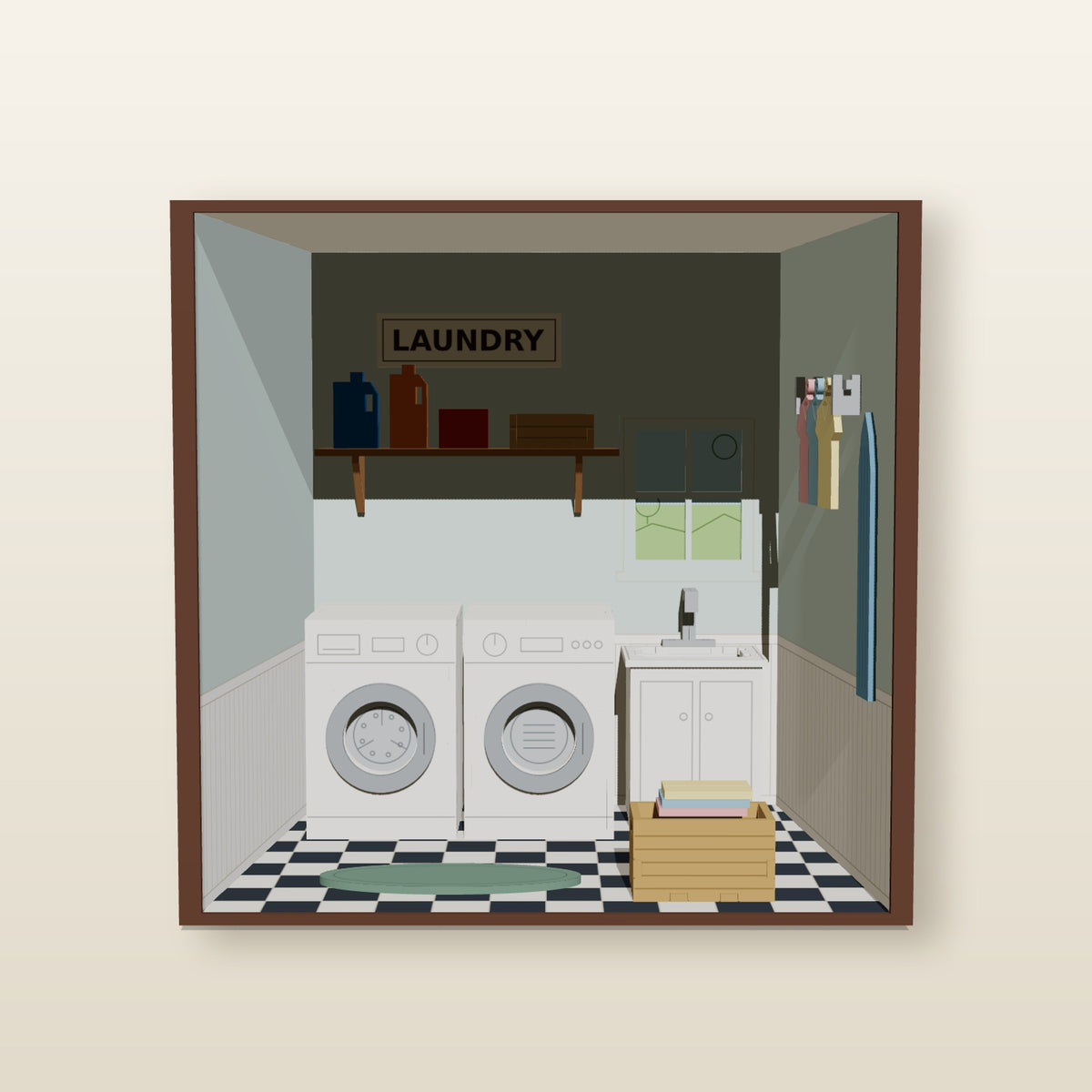

A 1:12 laundry room shadow box. The outer box is square, but the inside walls angle in toward the back so the room looks deeper than it is. Inside: a front-load washer and dryer, a utility sink with a real recessed basin, a wall shelf with detergent, baskets, towels, a clothes rod with shirts, an ironing board and an engraved LAUNDRY sign. Two keyholes in the back let it hang on the wall, or it stands on a shelf.

What you get (instant download)

• SVG cut files for 2.7 mm, 3 mm or 4 mm plywood (pick the folder that matches your calipers)
• 81 pieces on 12 boards (78 at 4 mm, where the layered props use fewer layers), each 10 x 10 in
• Every piece as its own SVG, for recutting a single part
• A 19-page instruction booklet: cutting guide, board maps, parts list, 24 illustrated assembly steps and paint colors
• Finished-model mockup images

Finished size

• Box: 241 x 236 x 193 mm (9.5 x 9.3 x 7.6 in), 1:12 scale
• Room inside: about 9 ft ceiling, back wall 193 mm wide (inner walls angle in 18 mm each side)
• Washer / dryer: 58 x 80 x 62 mm each (a 27 x 39 x 30 in front loader)

You'll need

• A laser cutter with at least a 10 x 10 in work area
• 2.7 mm, 3 mm or 4 mm plywood
• Wood glue, fine sandpaper, acrylic paints

Laser-friendly files

Black = cut, blue = score. Part labels are single-line lettering on the score layer, so they mark in the same quick pass - no engraving.

This is a digital download. No physical items will be shipped.

License

You may cut these files as often as you like and sell finished, physical models you make from them. Please don't share, resell or give away the digital files, or sell unassembled cut kits made from them without permission.
