Gable Cottage - Laser-Cut SVG Files

DIGITAL DOWNLOAD - you get the laser-cut files to make this yourself. Nothing is shipped.

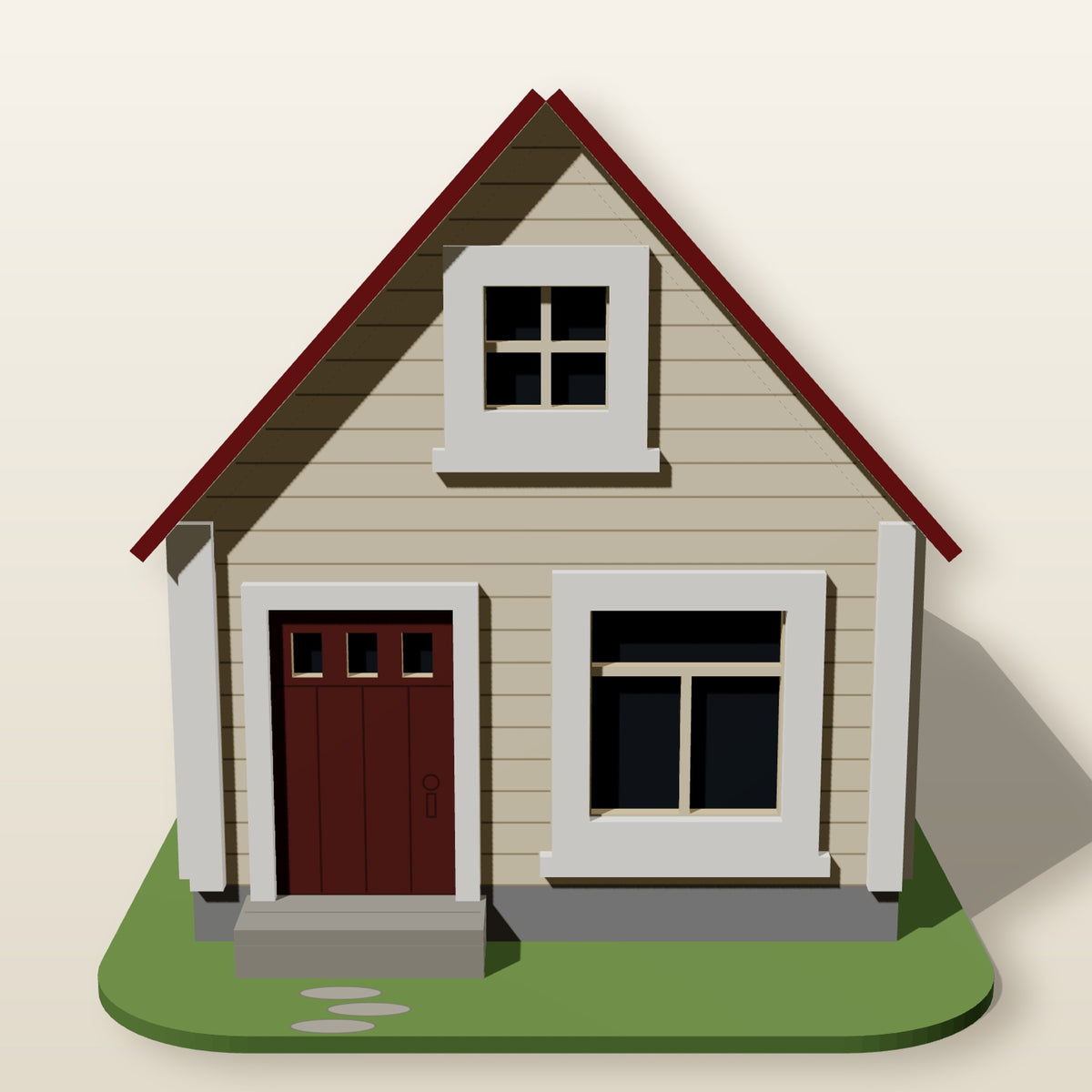

The Gable Cottage is a steep-roofed little house with lap siding, a plank door on a three-step stoop, crisp white trim and a standing-seam metal roof. Every piece locks together with tabs and slots, and a hidden truss inside keeps the walls square and carries the roof.

What you get (instant download)

• SVG cut files for 2.7 mm, 3 mm or 4 mm plywood (pick the folder that matches your calipers)
• 36 pieces on 3 boards (4 boards at 4 mm), each 10 x 10 in
• Every piece as its own SVG, for recutting a single part
• A 10-page instruction booklet: cutting guide, board maps, parts list, 8 illustrated assembly steps and paint colors

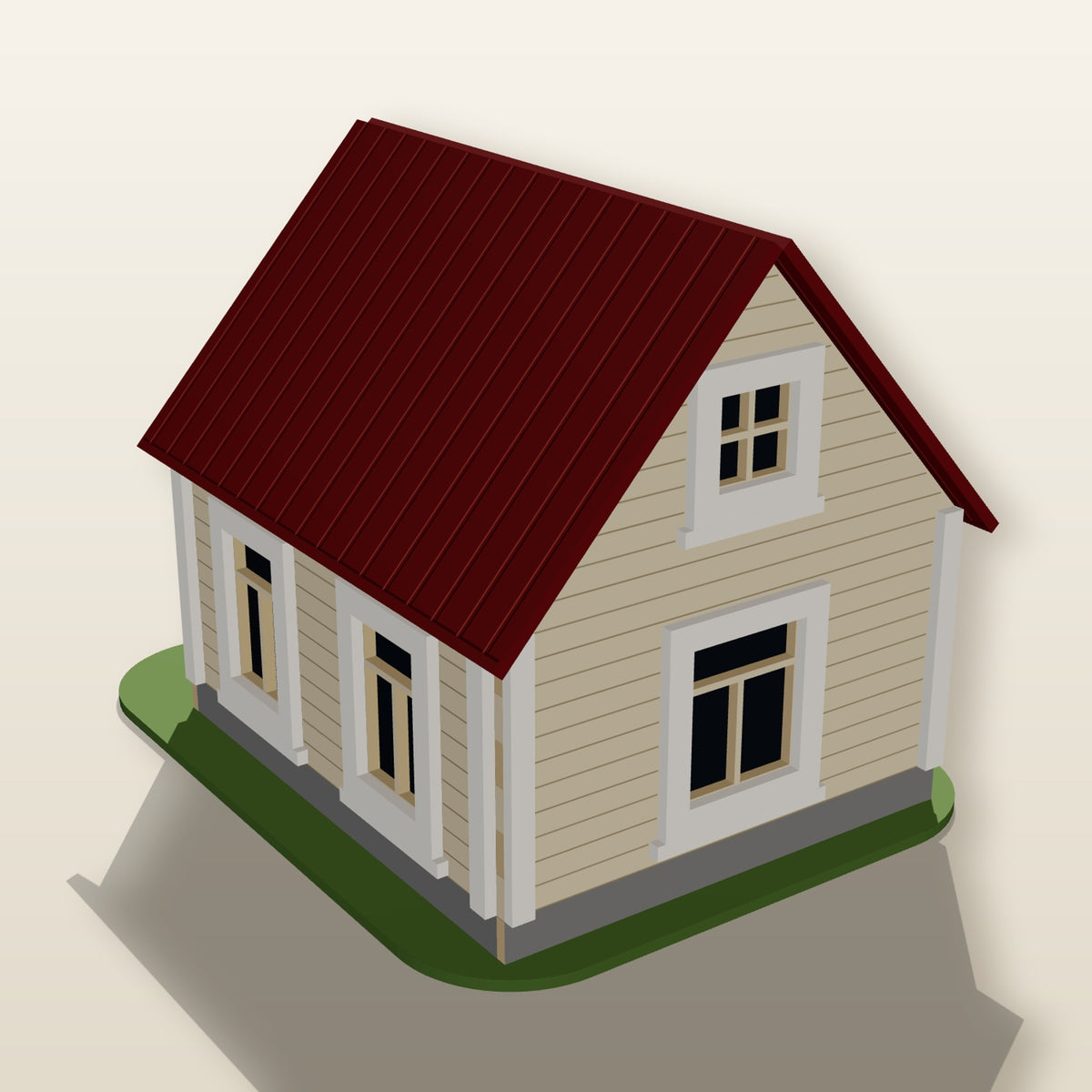

• Finished-model mockup images

Finished size

• Footprint: 118 x 140 mm (4.6 x 5.5 in)
• Height to ridge: 138 mm (5.4 in), 48 degree roof pitch
• Base: 146 x 186 mm rounded plate (5.7 x 7.3 in)

You'll need

• A laser cutter with at least a 10 x 10 in work area
• 2.7 mm, 3 mm or 4 mm plywood
• Wood glue, fine sandpaper, acrylic paints
• Optional: a battery LED tea light (never a real flame)

Laser-friendly files

Black = cut, blue = score. Part labels are single-line lettering on the score layer, so they mark in the same quick pass - no engraving.

This is a digital download. No physical items will be shipped.

License

You may cut these files as often as you like and sell finished, physical models you make from them. Please don't share, resell or give away the digital files, or sell unassembled cut kits made from them without permission.
