Fly Tier's Den - Laser-Cut SVG Files

DIGITAL DOWNLOAD - you get the laser-cut files to make this yourself. Nothing is shipped.

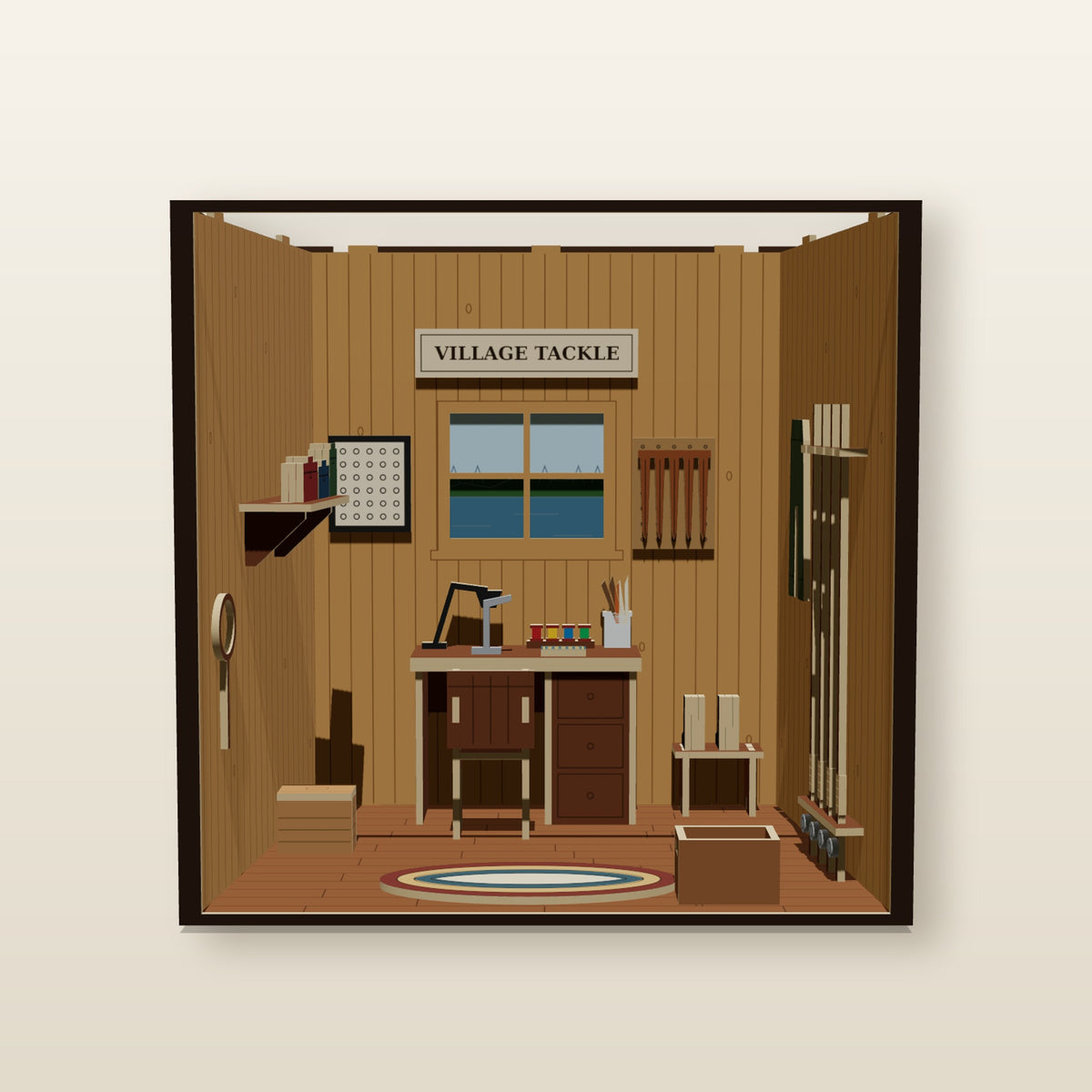

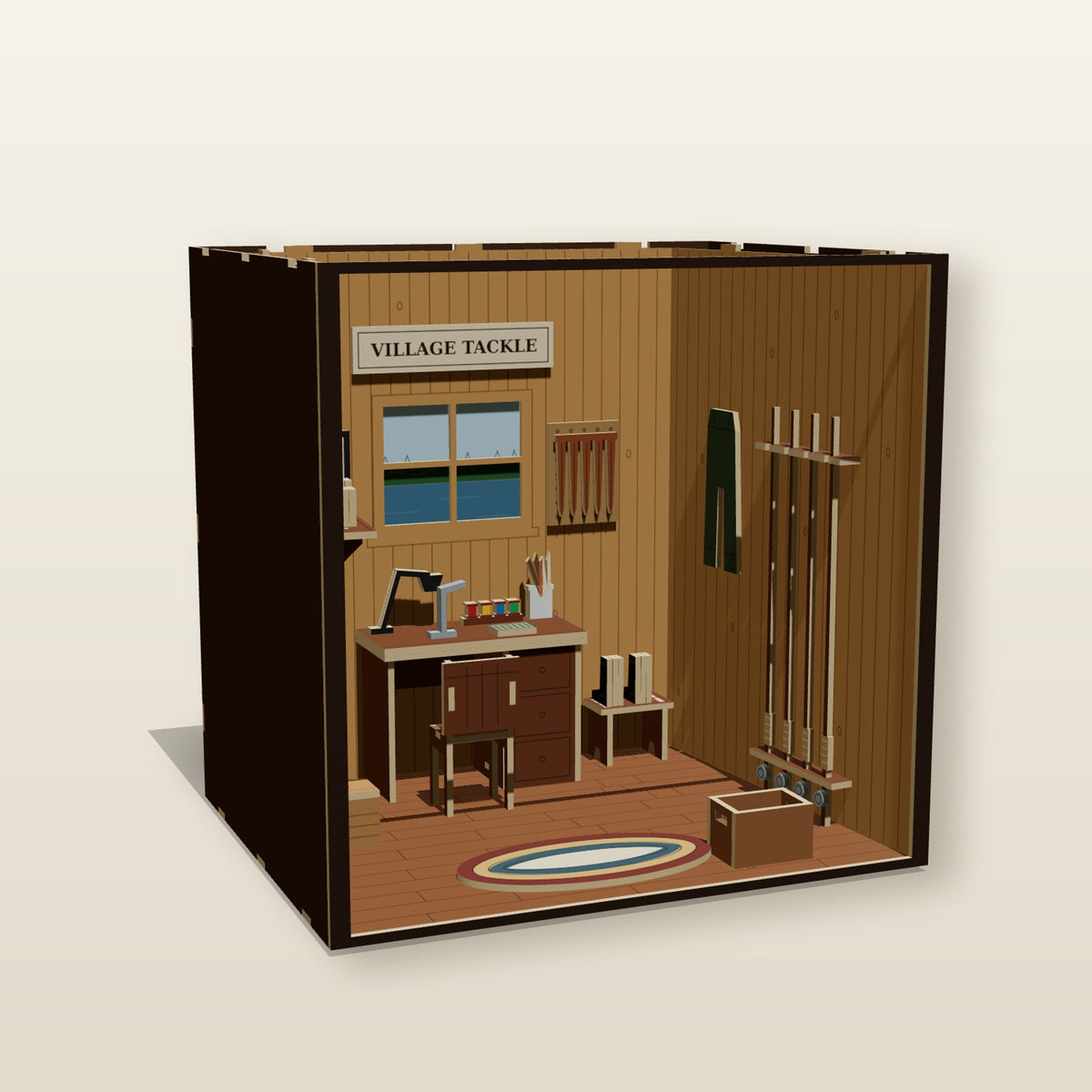

A 1:12 fly tier's den in a shadow box: knotty-pine walls, a plank floor and a lake view through the window. At the tying bench sit a vise, lamp, thread spools, feather jar and fly box; four fly rods stand in a rack locked into the wall, with waders, boots, tackle boxes, a creel and a braided rug. The same square box as our Laundry Room, with inside walls that angle in for extra depth, two keyholes for hanging, and an engraved VILLAGE TACKLE sign.

What you get (instant download)

• SVG cut files for 2.7 mm, 3 mm or 4 mm plywood (pick the folder that matches your calipers)
• 83 pieces on 10 boards (78 at 4 mm, where the layered props use fewer layers), each 10 x 10 in
• Every piece as its own SVG, for recutting a single part
• A 16-page instruction booklet: cutting guide, board maps, parts list, 18 illustrated assembly steps and paint colors
• Finished-model mockup images

Finished size

• Box: 241 x 236 x 193 mm (9.5 x 9.3 x 7.6 in), 1:12 scale
• Tying bench: 92 x 42 mm top, 64 mm tall (a 46 x 21 in bench, 32 in high)
• Fly rods: 168 mm (about 7 ft at 1:12)

You'll need

• A laser cutter with at least a 10 x 10 in work area
• 2.7 mm, 3 mm or 4 mm plywood
• Wood glue, fine sandpaper, acrylic paints

Laser-friendly files

Black = cut, blue = score. Part labels are single-line lettering on the score layer, so they mark in the same quick pass - no engraving.

This is a digital download. No physical items will be shipped.

License

You may cut these files as often as you like and sell finished, physical models you make from them. Please don't share, resell or give away the digital files, or sell unassembled cut kits made from them without permission.
