Farmhouse Kitchen Table (1:12) - Laser-Cut SVG Files

DIGITAL DOWNLOAD - you get the laser-cut files to make this yourself. Nothing is shipped.

A 1:12 farmhouse kitchen table with turned legs, a plank top with breadboard ends, and a drawer front scored on the apron. Each end frame is two layers, so the legs come out chunky and square like the real thing. The aprons and the centre stretcher tab through both layers of both end frames, and the top drops over double tenons, so every piece locks in and nothing needs holding while glue sets. Sized to sit in the Cottage Kitchen Room Box - piece #1 of The Monthly Bench kitchen. Files for 2.7, 3 and 4 mm plywood.

What you get (instant download)

• SVG cut files for 2.7 mm, 3 mm or 4 mm plywood (pick the folder that matches your calipers)
• 8 pieces on 1 board, each 10 x 10 in
• Every piece as its own SVG, for recutting a single part
• An 8-page instruction booklet: cutting guide, board maps, parts list, 4 illustrated assembly steps and paint colors

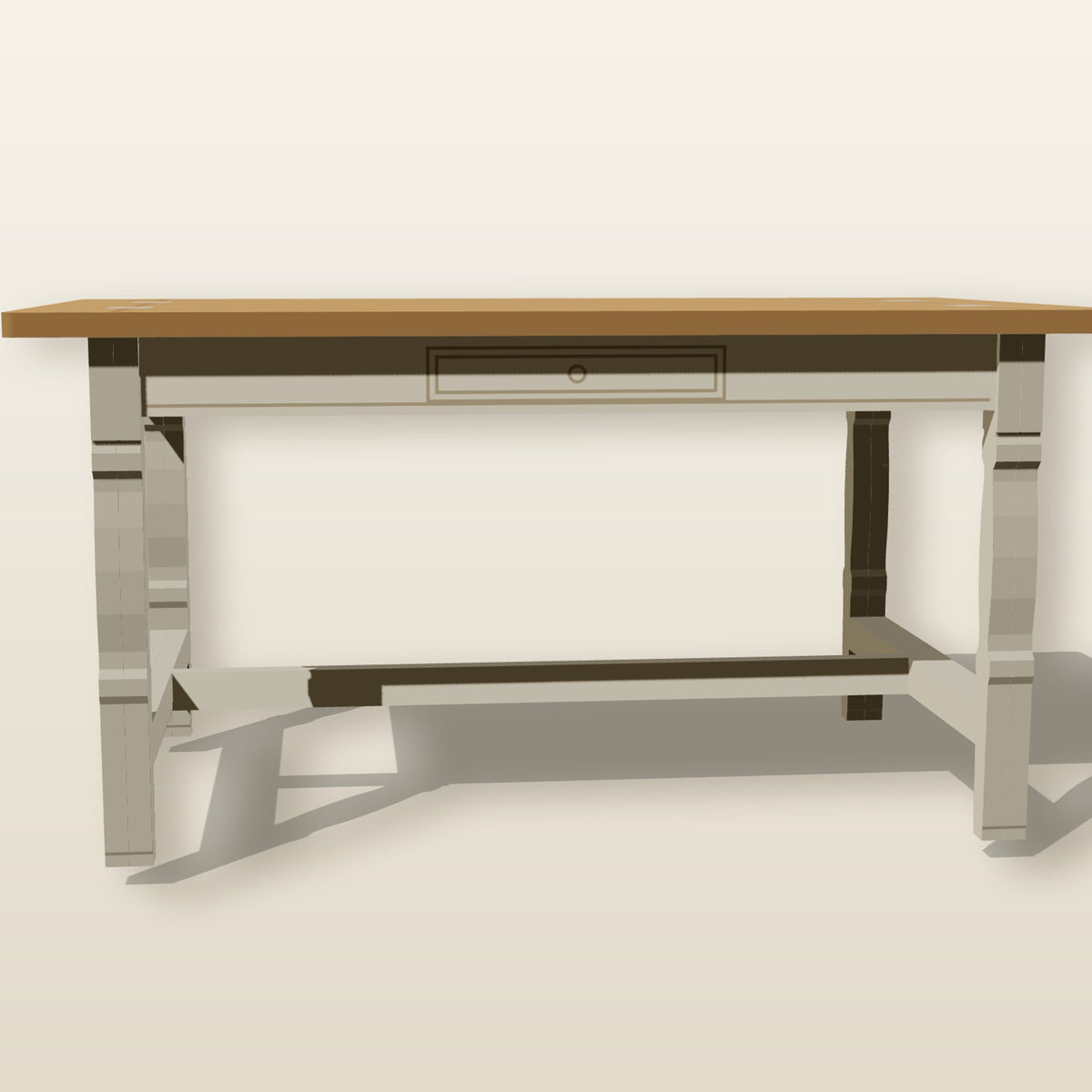

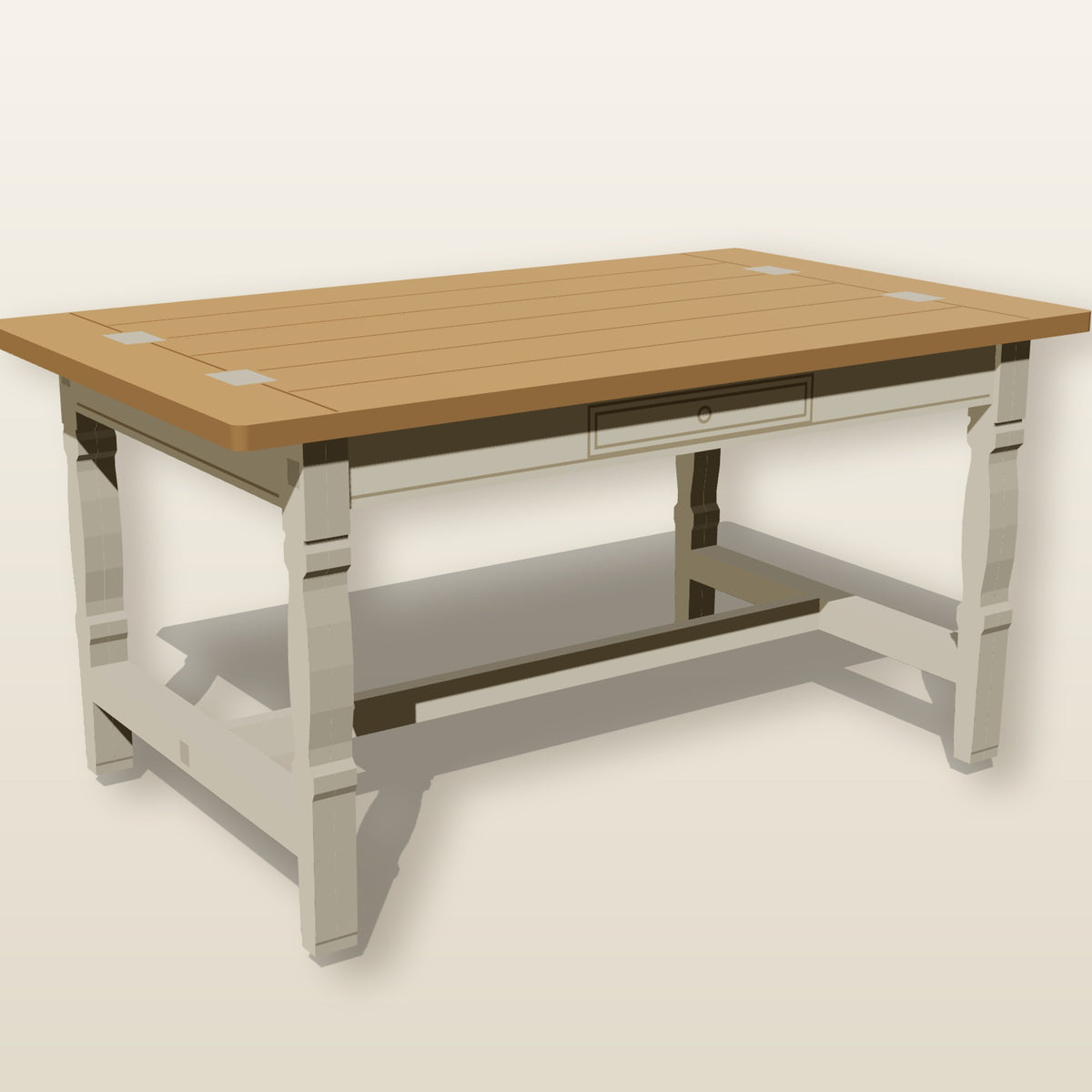

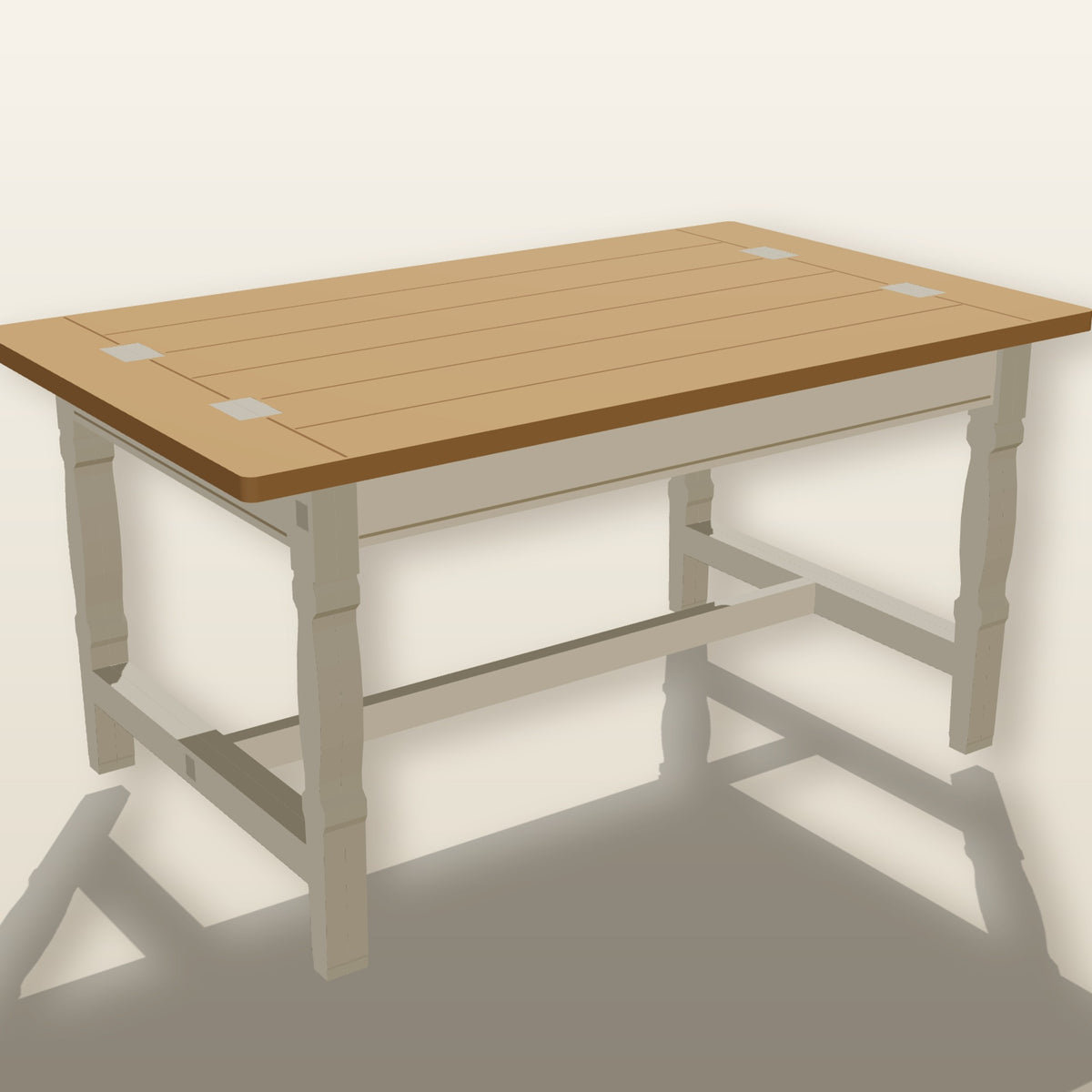

• Finished-model mockup images

Finished size

• Table: 127 x 76 mm, 63.5 mm tall (5 x 3 in, 2.5 in tall) - a 60 x 36 in, 30 in tall table at 1:12
• Legs: 5.4 mm square at 2.7 mm plywood (two layers)
• Scale: 1:12

You'll need

• A laser cutter with at least a 10 x 10 in work area
• 2.7 mm, 3 mm or 4 mm plywood
• Wood glue, fine sandpaper, acrylic paints

Laser-friendly files

Black = cut, blue = score. Part labels are single-line lettering on the score layer, so they mark in the same quick pass - no engraving.

This is a digital download. No physical items will be shipped.

License

You may cut these files as often as you like and sell finished, physical models you make from them. Please don't share, resell or give away the digital files, or sell unassembled cut kits made from them without permission.
