Dormer Cottage (1:24) - Laser-Cut SVG Files

A 1:24 dormer cottage with a front dormer and a shed-roof porch, set in its own garden yard.

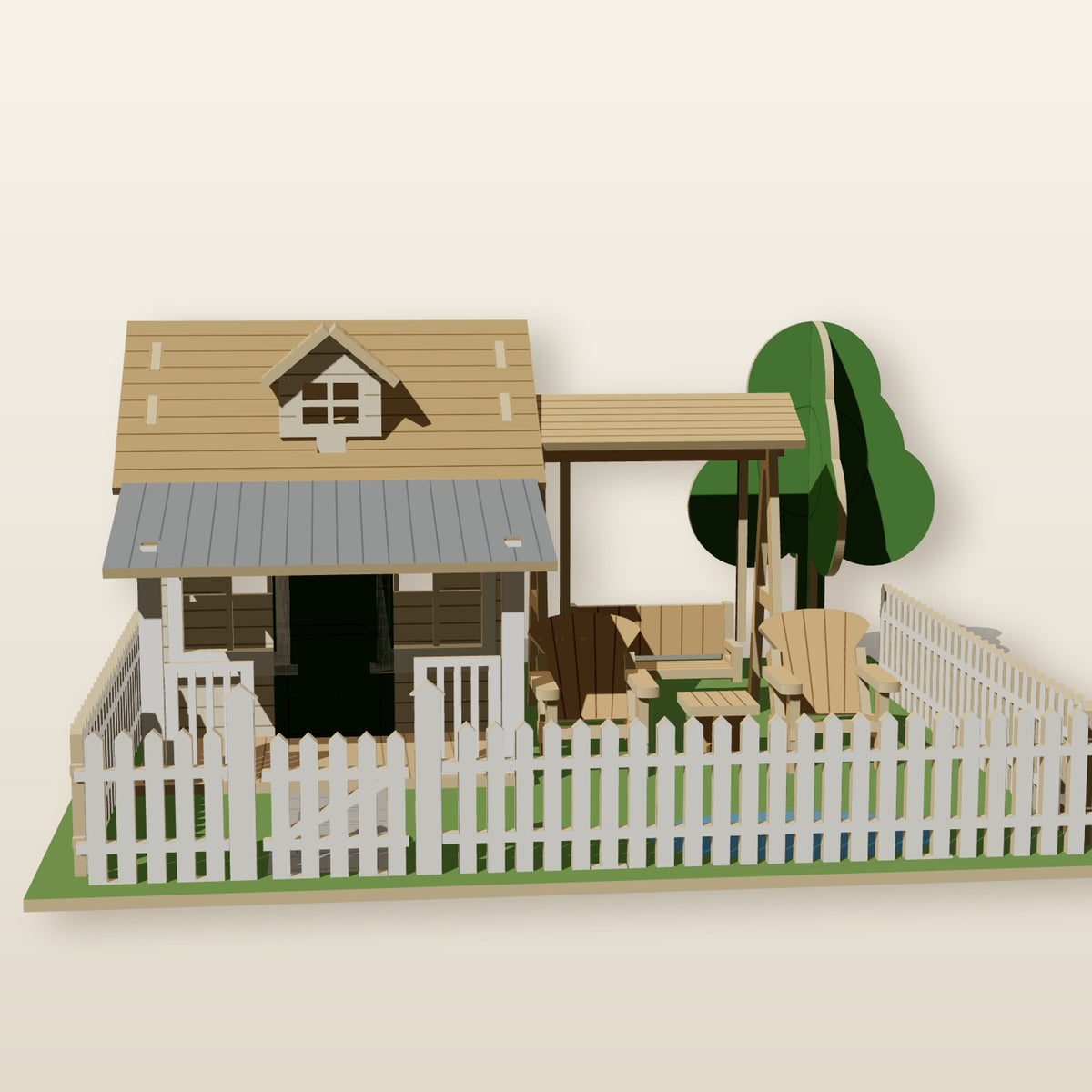

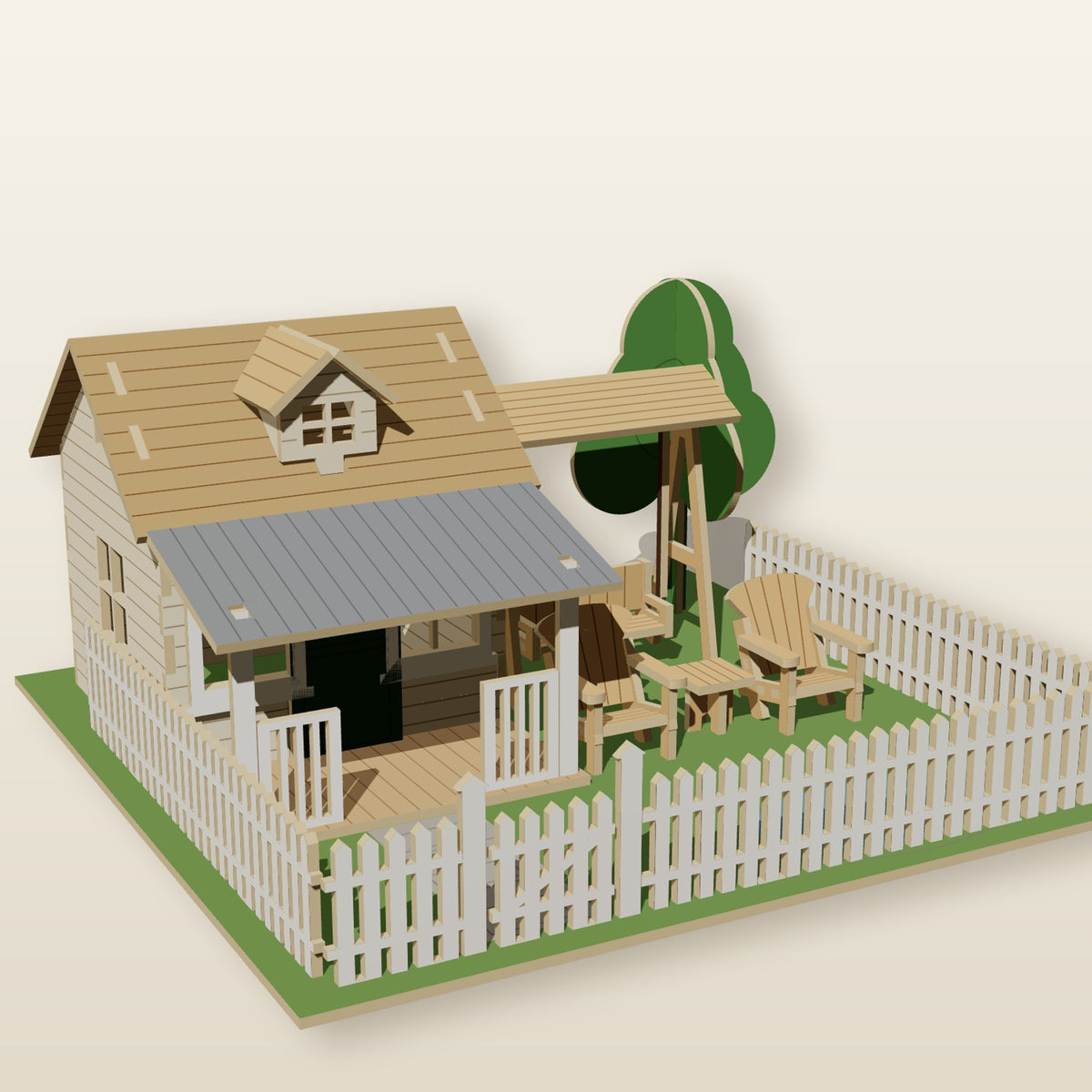

Dormer Cottage at 1:24: a side-gable cottage with a front dormer and a shed-roof porch on posts with railings, set in a fenced yard with a gate, path, pond, swing arbor with a hanging swing, two Adirondack chairs, a side table and a tree. Finger-jointed corners and tab-and-slot everywhere. Files for 2.7, 3 and 4 mm plywood.

What you get (instant download)

• SVG cut files for 2.7 mm, 3 mm or 4 mm plywood (pick the folder that matches your calipers)
• 55 pieces on 4 boards, each 10 x 10 in
• Every piece as its own SVG, for recutting a single part
• An 11-page instruction booklet: cutting guide, board maps, parts list, 6 illustrated assembly steps and paint colors
• Finished-model mockup images

Finished size

• House: 102 x 95 mm (4.0 x 3.8 in), 113 mm (4.5 in) to the ridge
• Base: 248 x 244 mm (9.8 x 9.6 in)
• Scale: 1:24

You'll need

• A laser cutter with at least a 10 x 10 in work area
• 2.7 mm, 3 mm or 4 mm plywood
• Wood glue, fine sandpaper, acrylic paints
• Optional: a battery LED tea light (never a real flame)

Laser-friendly files

Black = cut, blue = score. Part labels are single-line lettering on the score layer, so they mark in the same quick pass - no engraving.

This is a digital download. No physical items will be shipped.

License

You may cut these files as often as you like and sell finished, physical models you make from them. Please don't share, resell or give away the digital files, or sell unassembled cut kits made from them without permission.
