Covered Porch Swing (1:12) - Laser-Cut SVG Files

A 1:12 covered porch swing: braced A-frames, a scalloped shingle roof and a slatted bench swing with pillows.

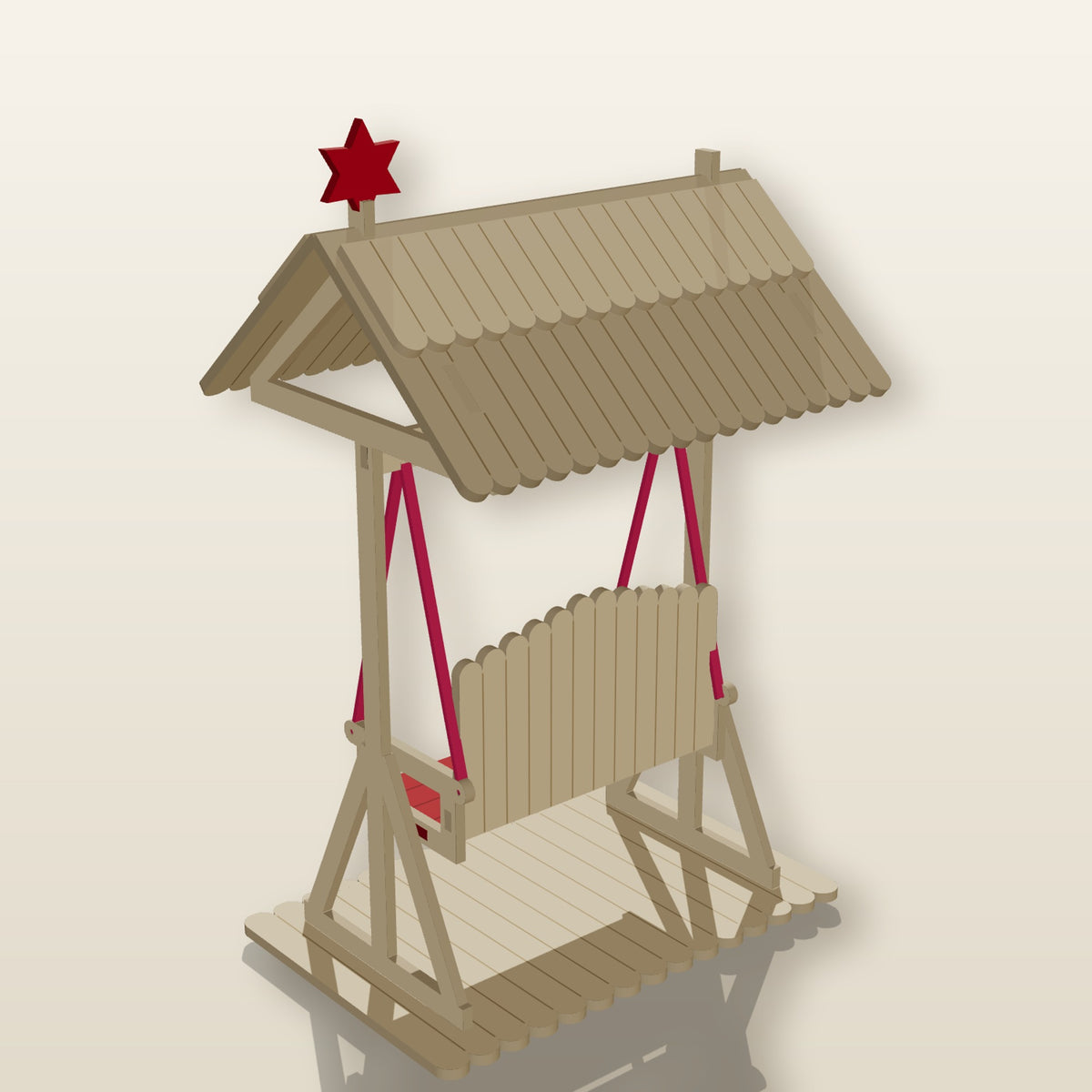

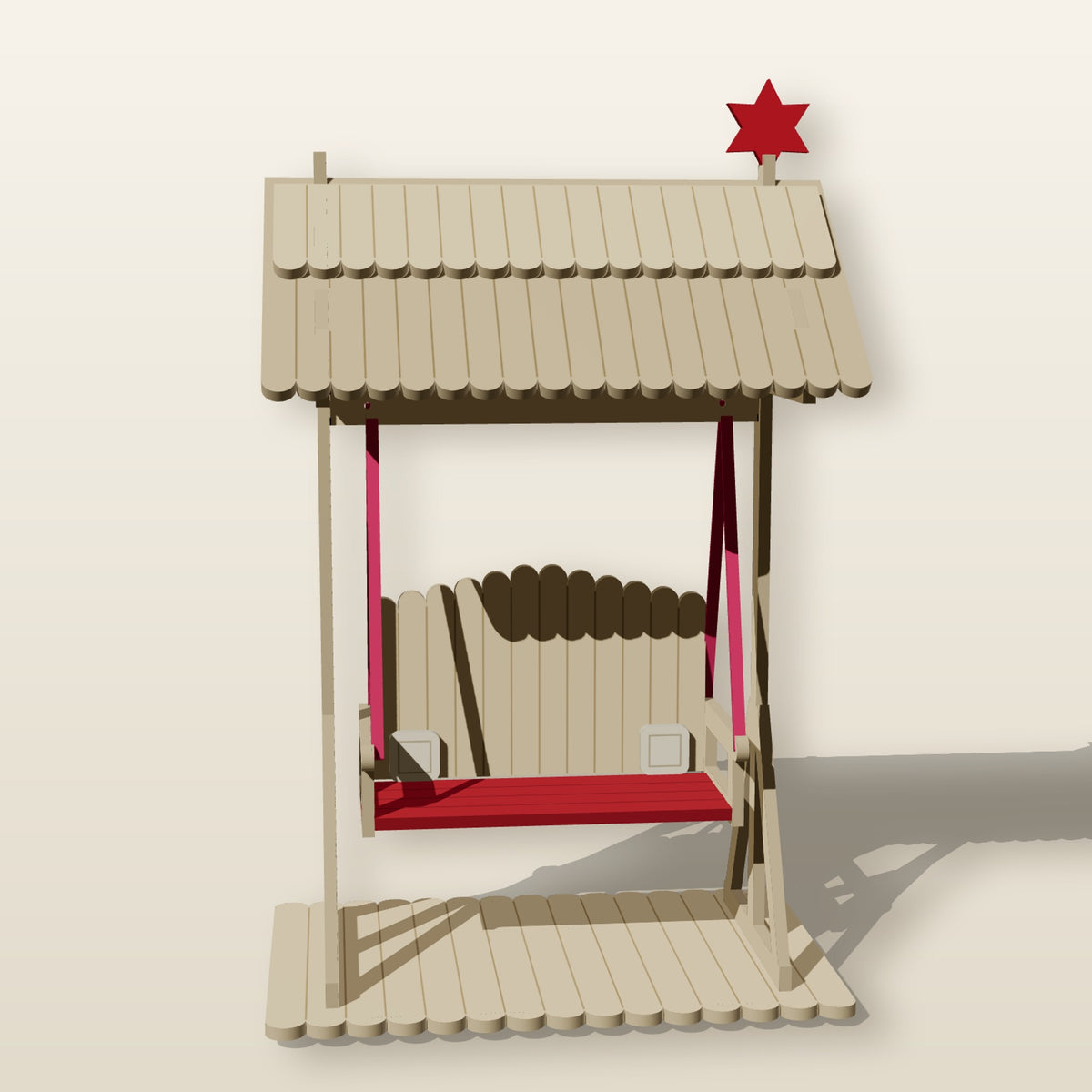

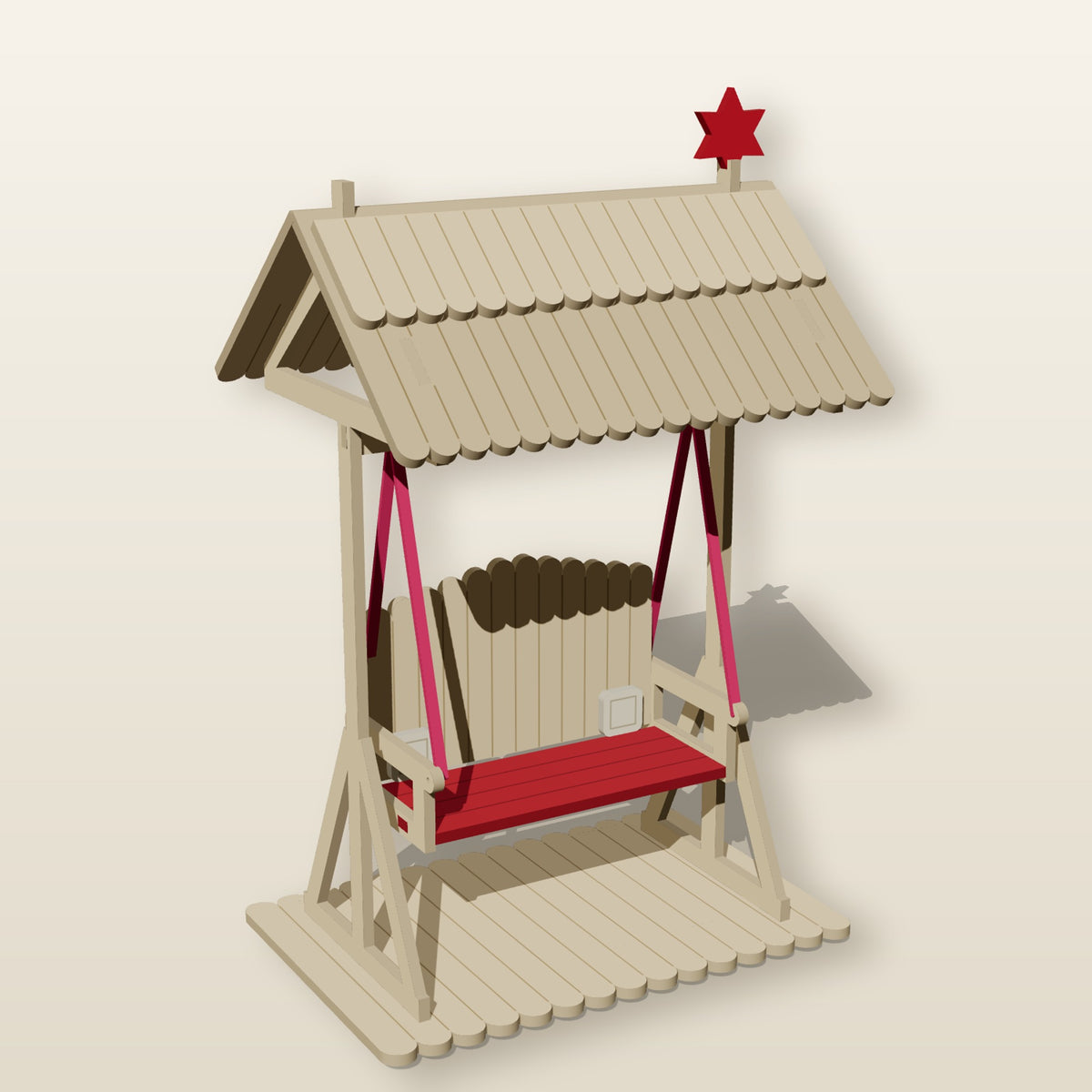

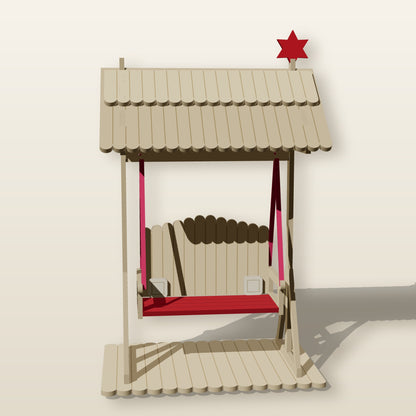

A little covered porch swing in 1:12: a plank deck with rounded board ends, two braced A-frames with gables, a swing beam, a scalloped shingle roof in two layers, and a slatted bench swing with arms, two throw pillows and an optional Christmas star that slides onto the ridge. Every structural piece locks in with tabs and slots, so nothing needs holding while glue sets. Hang the swing on ribbon or cord you supply. Files for 2.7, 3 and 4 mm plywood.

What you get (instant download)

• SVG cut files for 2.7 mm, 3 mm or 4 mm plywood (pick the folder that matches your calipers)
• 15 pieces on 2 boards, each 10 x 10 in
• Every piece as its own SVG, for recutting a single part
• A 9-page instruction booklet: cutting guide, board maps, parts list, 5 illustrated assembly steps and paint colors
• Finished-model mockup images

Finished size

• Deck: 85 x 127 mm (3.3 in x 5.0 in)
• Height: 195 mm (7.7 in) to the top of the star
• Swing: 85 mm wide, 38 mm deep, seat 34 mm above the deck
• Scale: 1:12

You'll need

• A laser cutter with at least a 10 x 10 in work area
• 2.7 mm, 3 mm or 4 mm plywood
• Wood glue, fine sandpaper, acrylic paints
• About 18 in of narrow ribbon or cord to hang the swing.

Laser-friendly files

Black = cut, blue = score. Part labels are single-line lettering on the score layer, so they mark in the same quick pass - no engraving.

This is a digital download. No physical items will be shipped.

License

You may cut these files as often as you like and sell finished, physical models you make from them. Please don't share, resell or give away the digital files, or sell unassembled cut kits made from them without permission.
