Cottage Kitchen Room Box (1:12) - Laser-Cut SVG Files

DIGITAL DOWNLOAD - you get the laser-cut files to make this room box yourself. Nothing is shipped.

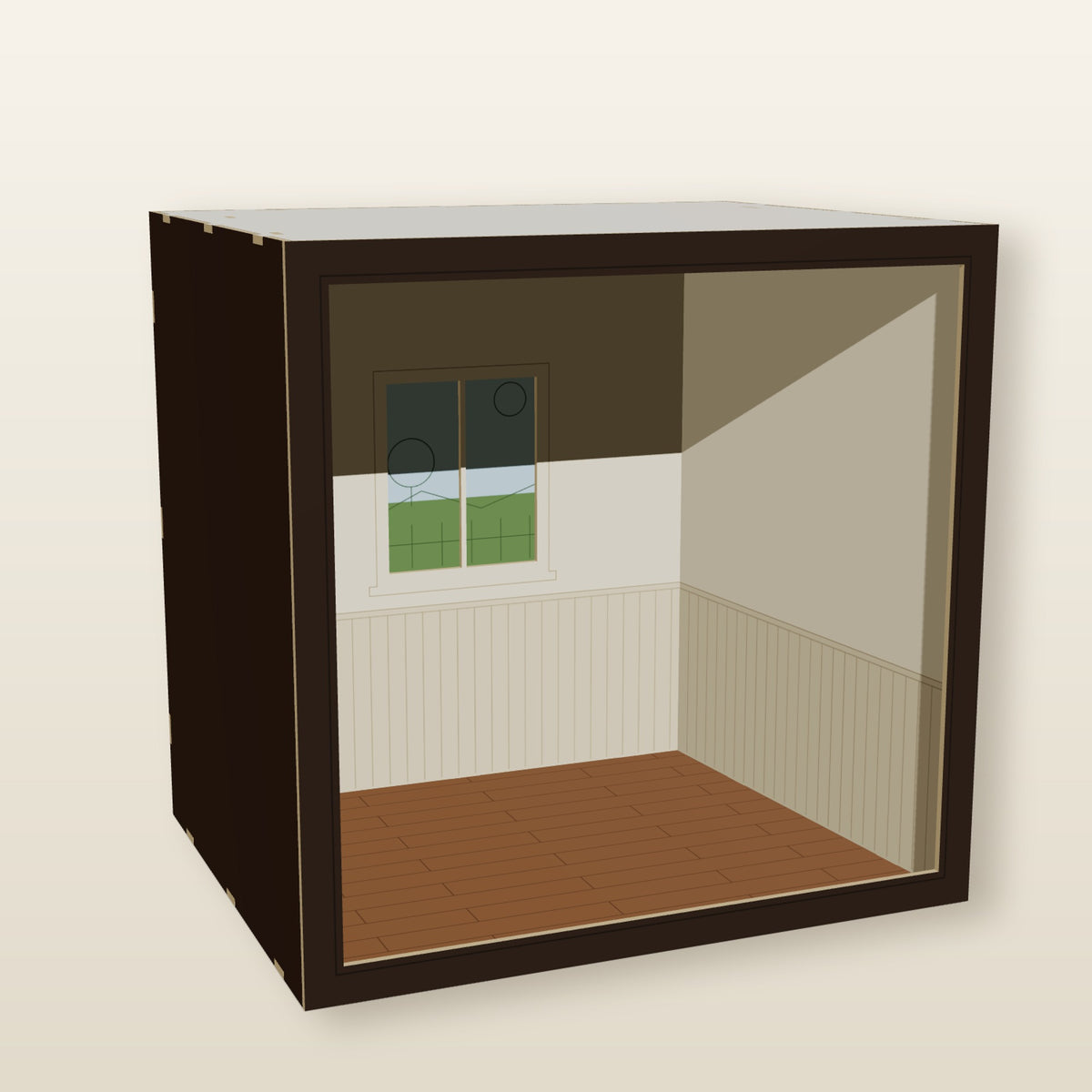

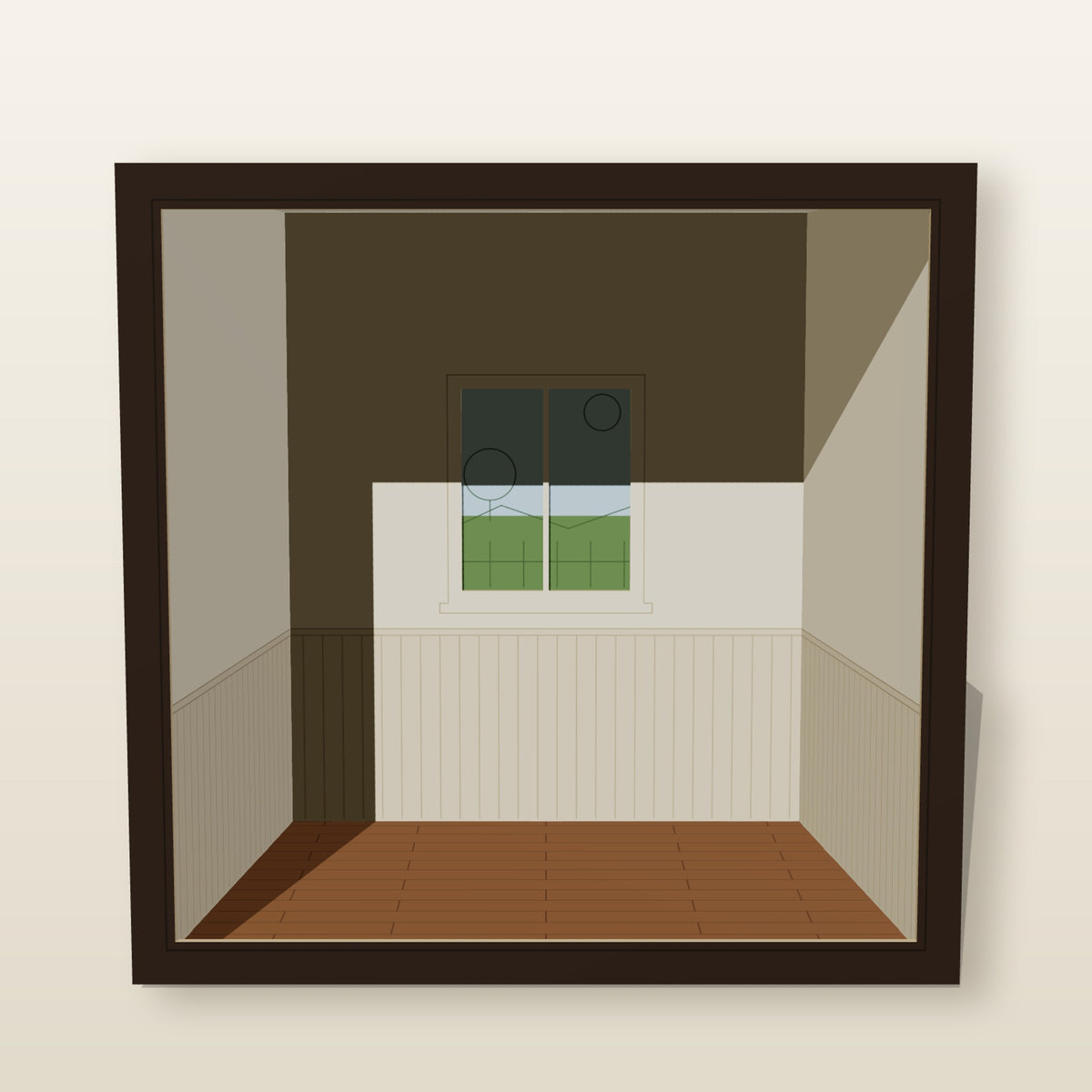

An open-front 1:12 cottage kitchen, ready to fill.

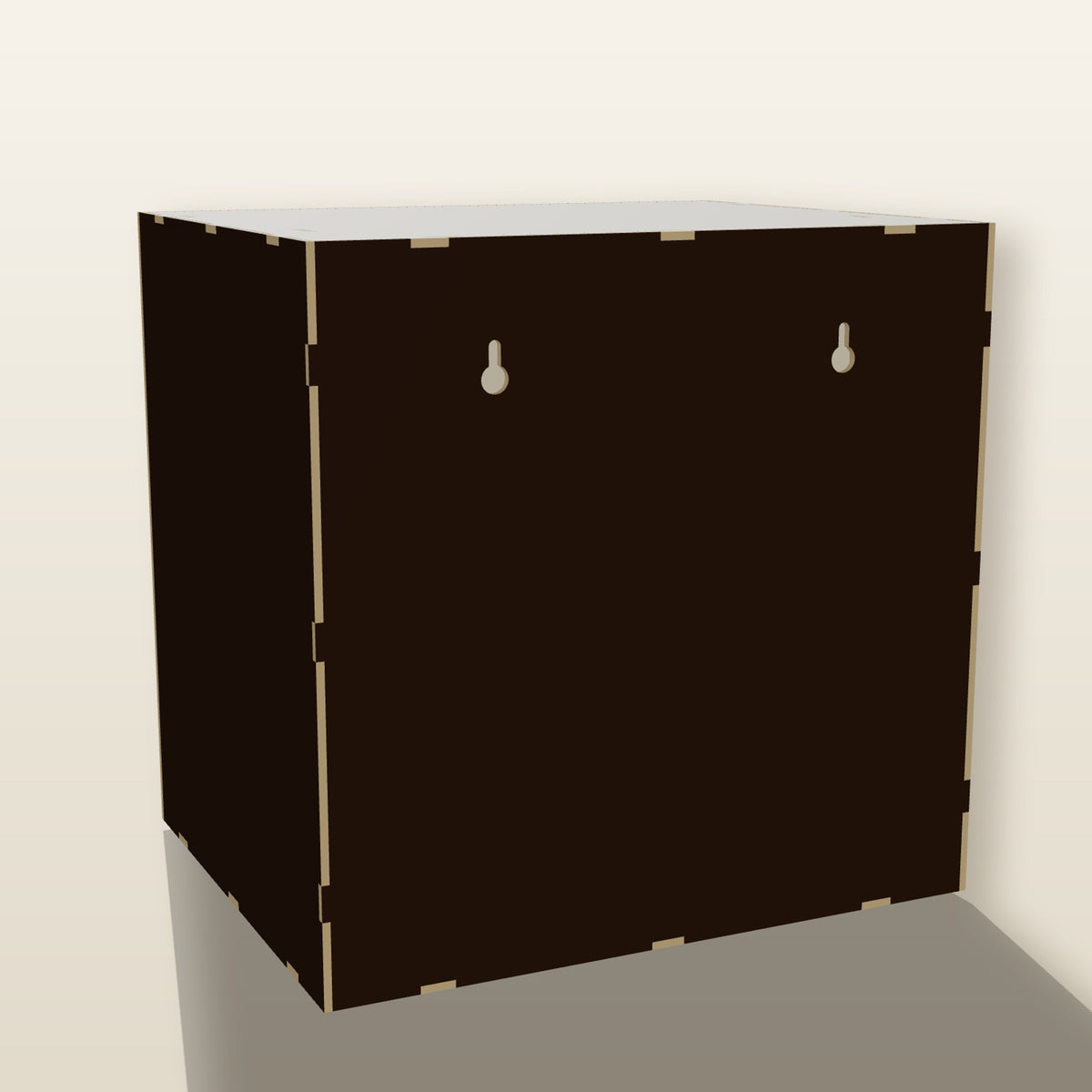

A two-pane window with a scored casing and sill sits in the back wall with a garden view card behind it. Beadboard wainscot and a chair rail wrap the back and side walls, and the floor is scored with planks. The inner side walls angle in toward the back for a forced-perspective look, two keyholes with nail pockets let it hang on a wall, and a flat 1/2 in front trim glues on and hides every joint. The box itself is tab-and-slot, so it squares up as you build it.

This is the room that year one of The Monthly Bench kit club fills - a new 1:12 kitchen piece every month.

What you get (instant download)

• SVG cut files for 2.7 mm, 3 mm or 4 mm plywood (pick the folder that matches your calipers)
• 12 pieces on 9 boards, each 10 x 10 in
• Holding tabs on every piece: lift the whole sheet off the laser in one go and push the pieces out at the bench - nothing drops into the honeycomb
• Part names scored next to each piece, so you always know which is which
• Every piece as its own SVG, for recutting a single part
• An 11-page instruction booklet: cutting guide, board maps, parts list, 6 illustrated assembly steps and Apple Barrel paint colors with item numbers
• Finished-model mockup images

Finished size

• Outside: 241 x 236 x 193 mm (9.5 x 9.3 x 7.6 in) W x H x D
• Inside: about 9 x 7.5 ft of kitchen at 1:12 (back wall 194 mm, 185 mm deep, 231 mm high)
• Window: 30 x 36 in at 1:12, sill 42 in above the floor

You'll need

• A laser cutter with at least a 10 x 10 in work area
• 2.7 mm, 3 mm or 4 mm plywood (9 sheets, 10 x 10 in)
• Wood glue (for the front trim, pockets and window view card), fine sandpaper, optional acrylic paints

Laser-friendly files

Black = cut, blue = score. Part names are single-line lettering on the score layer, so they mark in the same quick pass - no engraving.

This is a digital download. No physical items will be shipped.

License

You may cut these files as often as you like and sell finished, physical models you make from them. Please don't share, resell or give away the digital files, or sell unassembled cut kits made from them without permission.
