Armchair (1:12) - Laser-Cut SVG Files

A 1:12 mid-century armchair with a curved arm-and-back rail and leaning back legs - 8 tab-and-slot pieces.

A 1:12 armchair with a curved arm-and-back rail and leaning back legs, from a mid-century dining-chair design. Each side frame is one piece - front leg, back leg and seat rail - so there are no tiny legs to line up. The seat and aprons tab into the sides, the curved arm rail drops over the leg tenons, and two more curved layers build up the backrest with the back-leg tenons running up through all three. Every piece locks in, so nothing needs holding while glue sets. Files for 2.7, 3 and 4 mm plywood.

What you get (instant download)

• SVG cut files for 2.7 mm, 3 mm or 4 mm plywood (pick the folder that matches your calipers)
• 8 pieces on 1 board, each 10 x 10 in
• Every piece as its own SVG, for recutting a single part
• An 8-page instruction booklet: cutting guide, board maps, parts list, 4 illustrated assembly steps and paint colors

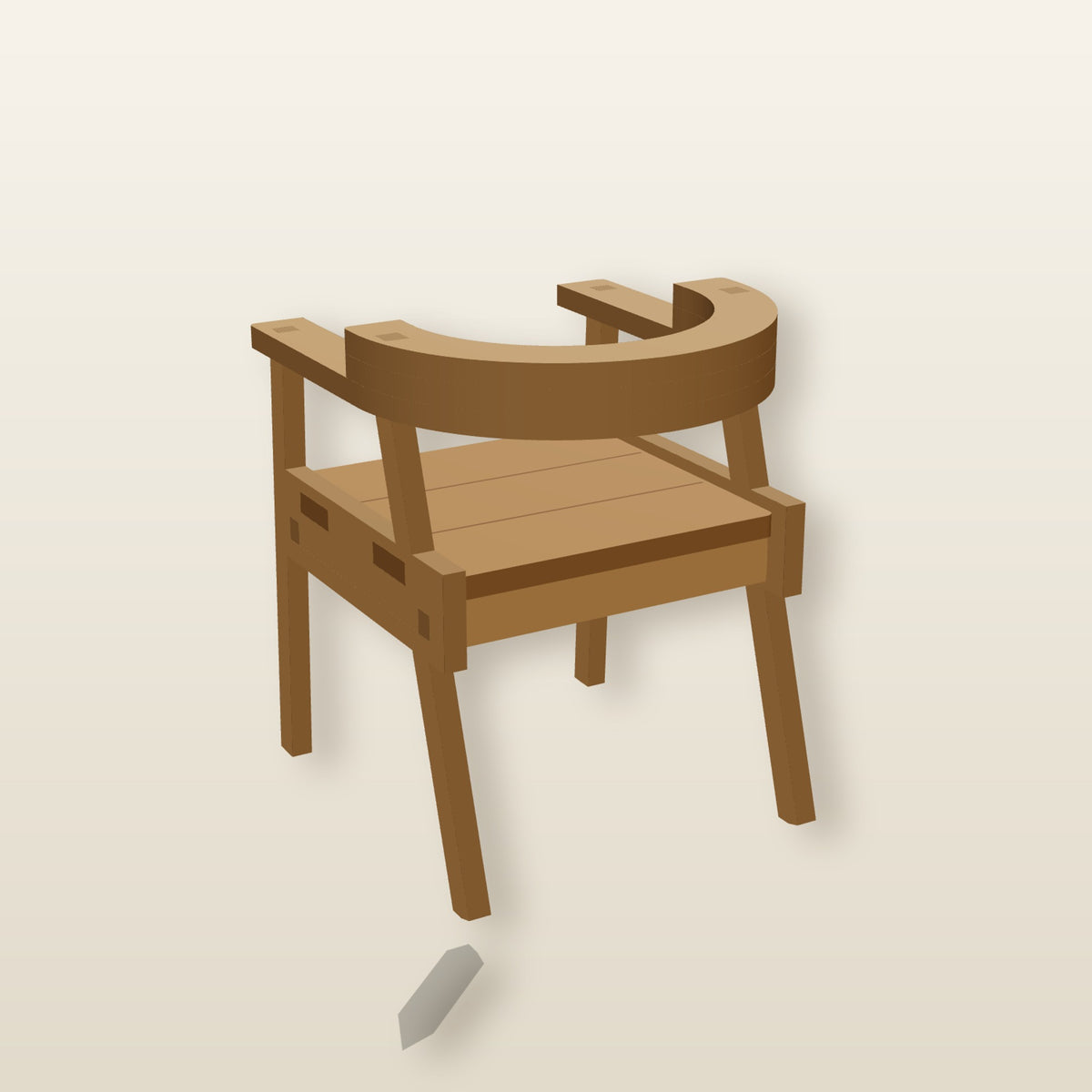

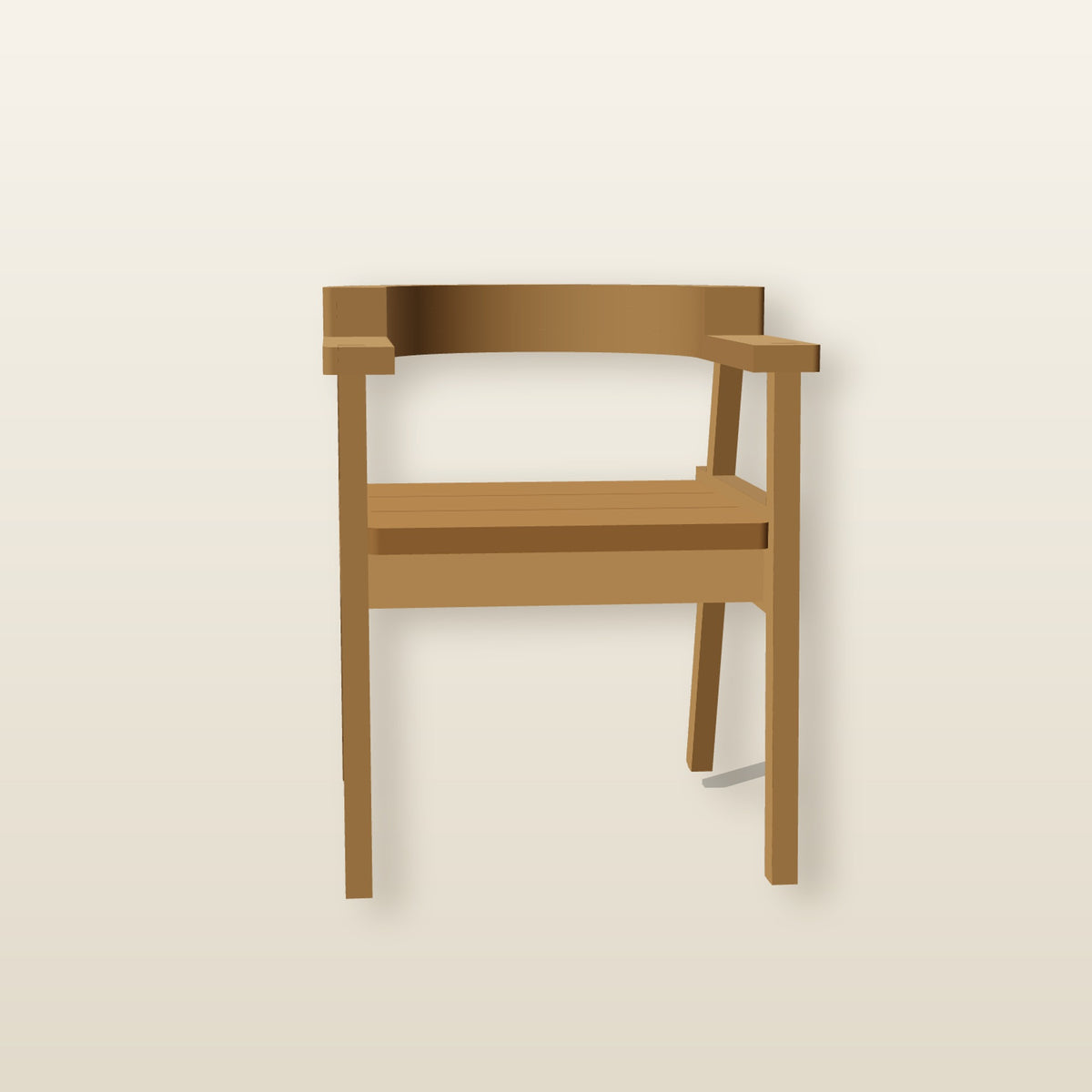

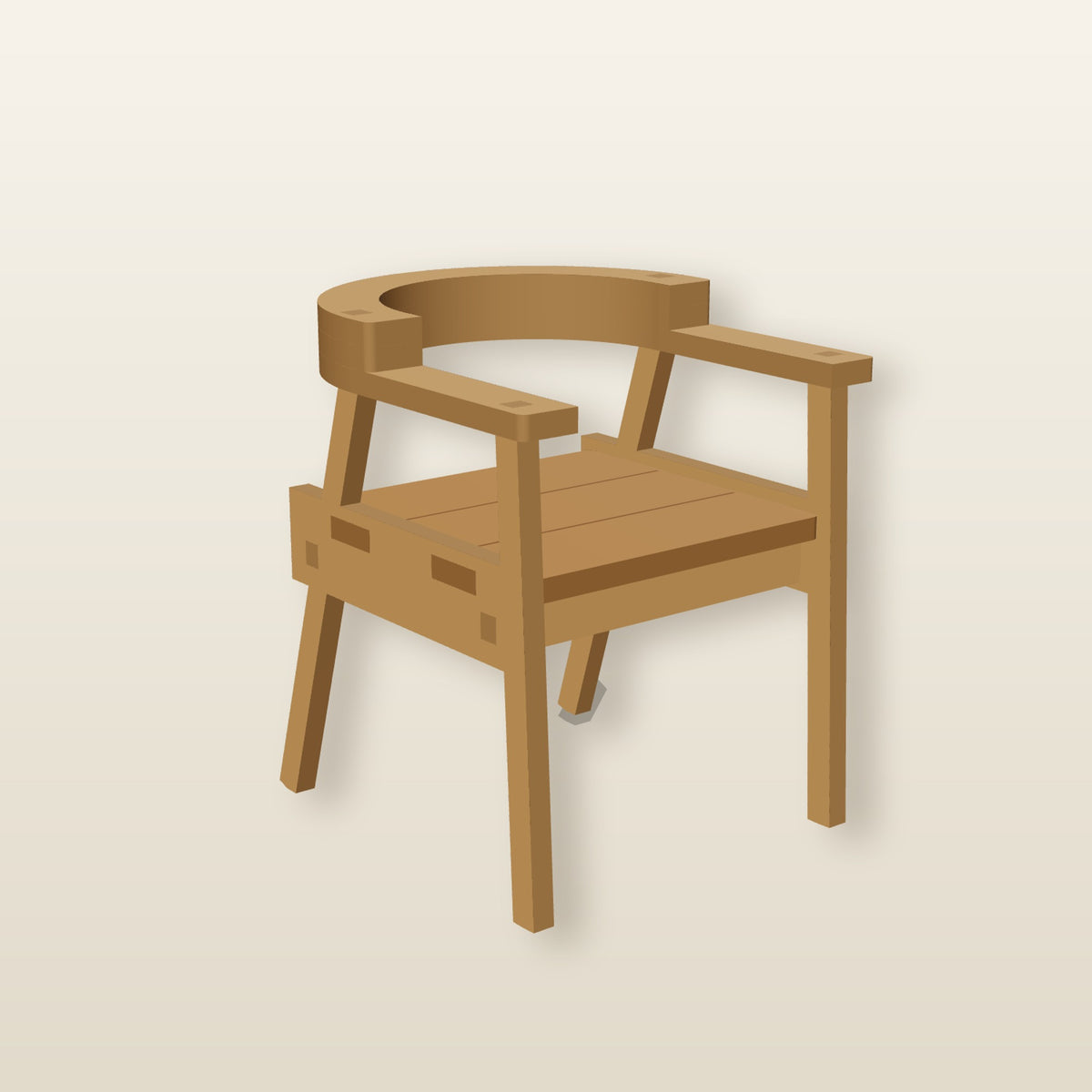

• Finished-model mockup images

Finished size

• Chair: 47 x 55 mm, 63 mm tall (seat 37.5 mm high) - a 560 x 600 mm, 760 mm armchair at 1:12
• Scale: 1:12

You'll need

• A laser cutter with at least a 10 x 10 in work area
• 2.7 mm, 3 mm or 4 mm plywood
• Wood glue, fine sandpaper, acrylic paints

Laser-friendly files

Black = cut, blue = score. Part labels are single-line lettering on the score layer, so they mark in the same quick pass - no engraving.

This is a digital download. No physical items will be shipped.

License

You may cut these files as often as you like and sell finished, physical models you make from them. Please don't share, resell or give away the digital files, or sell unassembled cut kits made from them without permission.
